Customer satisfy is the eternal pursue of corpoation
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | BG |
| Certification: | ISO9001, SGS |
| Model Number: | D03 |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard export carton package |
| Delivery Time: | Negotiation |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 150 Tons |
| Product Name: | Copper Clad Aluminum Bus Bar | Material:: | Aluminum |
|---|---|---|---|
| Surface:: | Tin Plate, Nickel Plate | Density(g/cm³)：: | 3.94 |
| HS Code:: | 7606129000 | Size:: | OEM/ODM Service |
| Highlight: | low voltage busbar,electrical panel bus bar |
||
Detail Description
Material: Aluminum
Size: As the client design
Item: D03

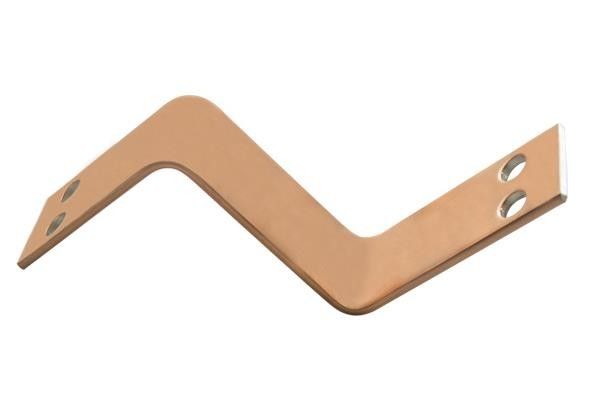

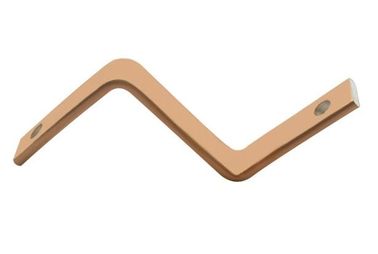

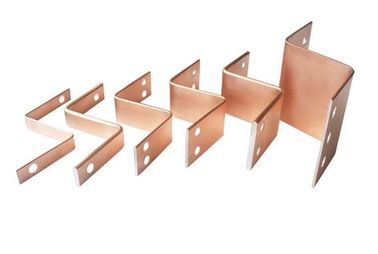

Product Name: Copper Clad Aluminum Bus bar
Type: New product
Copper Aluminum Volume Ratio: 20:80
Copper Aluminum Weight Ratio: 45:55
Density(g/cm³): 3.94
Surface: Tin Plate, Nickel Plate
HS Code: 7606129000
Introduction:
Revolutionary Conductor Material to Substitute Copper Busbar, Cost-saving
BG Copper clad Aluminum busbar is the new conductor material used for substituting copper busbar. Owning excellent electronic conductivity and tensile strength, BG busbar could greatly reduce the conductor material cost. BG Copper clad Aluminum Busbar adopts advanced diecasting continuous rolling and direct casting technique which makes the copper layer and aluminum layer combining each other firmly and permanently, and has passed the reliability verifications such as 1000 times heavy current thermal cycling test. It is widely used in the electrical equipments such as busway, high-low switchgear cabinet, wind power conductive rail, converter, box-type substation, communication power supply cabinet and other relevant application field.
Feature:
1. High Interface Bonding Strength
BG busbar adopts diecasting continuous rolling and direct casting technique and the interface bonding strength is more than 35 Mpa. When cut, punched and bent, copper and aluminum could not delaminate and could bear the stress caused by heating expansion and colling contract in major range temperature difference.
2. Copper Volume Ratio 20%, Best Cost Performance
BG busbar copper volume ratio is 20% and meets the requirement of Standard for Electric Power Industry of the People's Republic of China DL/T247-2012 "Copper clad aluminium bus bars for equipments of transmission and commutation".
3. Reliable Service Life
BG busbar does the experiment in the nationally recognized testing agencies (CNAS) and is issued qualified test report according to Standard for Electric Power Industry of the People's Republic of China DL/T247-2012 "Copper clad aluminium bus bars for equipments of transmission and commutation".
1000 times thermal cycling test is done according to the requirements of GB/T 9327-2008"Test Methods and Requirements of Rated voltage 35kV (Um=40. 5kV) and below Power Cables Conductor crimp and mechanical connection of connectors" and is issued qualified test report.
Above two qualified test reports are essential requirements for CCA busbar CCC product identification from China Quality Certification Center.
4. High Electrical Conductivity
Current-carrying capacity of CCA busbar reaches 86% of T2 copper busbars. We could select one standard size bigger than copper busbars when selecting cross-sections, and this does not influence the structures of electronic control equipments and power distribution equipments. We do not need to redesign and it is convenient to change.
5. Low Cost, Energy - Saving
BG busbar could lower at least 40% conductor material cost. Selecting a larger cross section at low cost, the impedance will decrease, the temperature will lower, the energy consumption will be reduced and HT CCA busbar could be used safely.
BG busbar was conducted a comprehensive inspection in national authoritative testing organizations and was in full compliance with Standard for Electric Power Industry of the People's Republic of China, therefore, HT copper clad aluminum busbar becomes the first which Chinese Quality Certification Center offers Compulsory Certification (CCC certification ) towards copper clad aluminum busbar.
2. Trade Information
| Payment Method | T/T or L/C |
| Trade Terms | EXW / FOB / CIF |
| Payment Terms | 30% deposit after signing contract, and the balance should be paid before shipment or after sending B/L copy |
| Delivery way | By sea, land and air |
| Delivery Time | According to the quantity |
3. What we can do:
| Products | We make products as per your design drawings or samples. |
| Material |
1. Stainless Steel 2. Steel: 3. Brass:
4. Bronze: 5.copper: 6.Beryllium copper:
|
| Surface treatment | as per your requirements,such as plating,brush,powder coat, Hot dip galvanized,mirror polishing |
| Certificate | ISO9001:2008, SGS, ROHS,CE |
| Standard | ROHS,ISO, ANSI, ASTM, JIS, DIN, GB |
| Testing tool |
3D projectors, ordinary projectors, all kinds of accurate measuring tools, Salt spraying testers, high temperature resistant testers, low temperature resistant testers |
| Processes |
stamping, CNC machining, casting laser cutting, drilling, tapping, laser welding, butt welding, argon arc welding, CNC turning, surface grinder processing, cylindrical grinder processing, |
1. Competitive Advantage Produts
2. FULL REFUND in case of Bad Quality OR LATE Delivery
3. Confidentiality Agreement "Business Secret CONTRACT"
4. Quality Assurance CONTRACT
5. SMALL order welcomed
6. After Sales Service 24*7
7. Choosing national standard eco-friendly solid brass and Aluminum for main body material.
8. Full production line including Soft connection Process , Softening process, Aluminum Row production process.
9. Checking in every production processes with modern testing machines to insure reliable performance of products.
10. Establishing the key management team to satisfied the customers all over the world.
11. Manufacturing capacity up to 10000-30000pcs Per Month.
Our Product Package:
Regarding the packaging of Aluminum Bar, it depends on the product volume and size, and also most important is your requirements.
Usually, the carton is used to pack all the Aluminum Bar.
In some cases, the wooden case is used to pack several cartons together.
FAQ
Q1.Are you factory?
A.Yes,we are factory for copper and aluminum bus bars since year of 2012.You are welcome to visit our factory at your convenient time.
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q5: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
