Customer satisfy is the eternal pursue of corpoation
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | OEM |
| Certification: | CCC, ISO9001,CE |
| Model Number: | D19 |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard export carton package |
| Delivery Time: | Negotiation |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 150 Tons |
| Material:: | 1060 Aluminum | Size:: | Customize |
|---|---|---|---|
| Product Name:: | Aluminum Bimetal CCA Bus Bar | Thickness:: | 2.5mm |
| Width:: | 66mm | Length:: | 114mm |
| High Light: | low voltage busbar,electrical panel bus bar |
||
Detail Description
| Material: 1060 Aluminum |
| Size: Customize |
| Item: D19 |

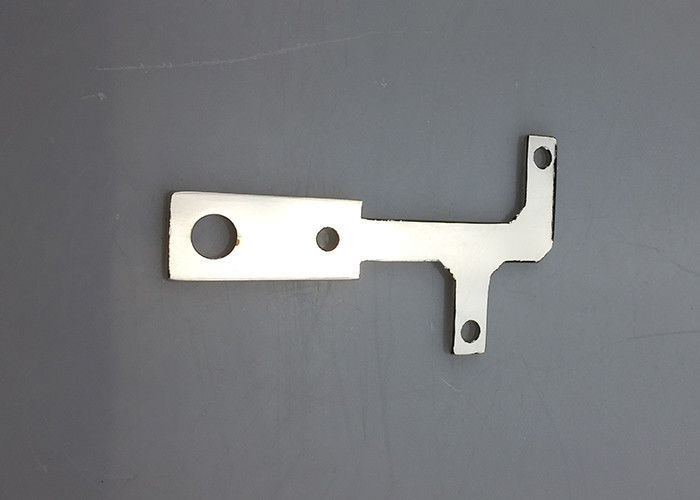

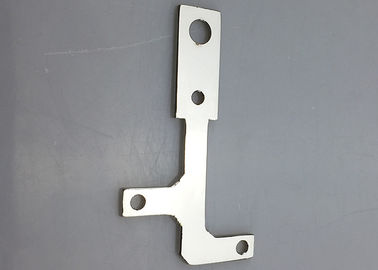

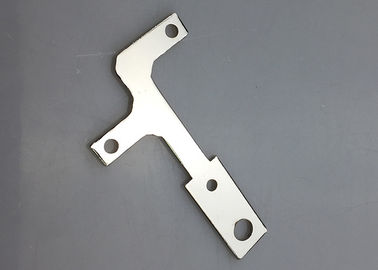

| Product Name: aluminum bimetal CCA busbar |
| Thickness: 2.5mm |
| Width: 66mm |
| Length: 114mm |
| Feature: Excellent electrical conductivity |
| Finish: Tin Plated |
| Usage: Electric power industry for connecting conductors. |
.
Technical Parameters:
| Thickness×Width (mm) | 3.0 × (30-950) |
| Weight Ratio (Cu:Al) | 45% : 55% |
| Volume Ratio (Cu:Al) | 20% : 80% |
| Density (g/cm³) | 2.73 |
| Resistivity (Ωmm²/m) | ≤0.024 |
| Tensile Strength (N/mm²) | ≥120 |
| Elongation ( %) | ≥16 |
| Peeling Strength (N/mm²) | ≥12 |
Conventional Types and Sizes:
| Types | Total Thickness | Thickness of copper | Width | Length | Weight(kg/m) |
| BG-1.5*550*650 | 1.5 | 0.3mm+0.3mm | 550 | 650 | 1.46 |
| BG-1.5*220*460 | 1.5 | 0.3mm+0.3mm | 220 | 460 | 0.41 |
| BG-1.5*350*750 | 1.5 | 0.3mm+0.3mm | 350 | 750 | 1.07 |
| BG-3 ×30 | 3mm | 0.3mm+0.3mm | 30mm | ≤3000mm | 0.357 |
| BG-3 ×40 | 3mm | 0.3mm+0.3mm | 40mm | ≤3000mm | 0.476 |
| BG-3 ×50 | 3mm | 0.3mm+0.3mm | 50mm | ≤3000mm | 0.595 |
| BG-3 ×60 | 3mm | 0.3mm+0.3mm | 60mm | ≤3000mm | 0.714 |
| Others | As request |
Features and Advantages:
1. Excellent electrical conductivity.
2. High bonding strength.
3. Available for bending, drilling, stamping etc.
4. lower cost and lighter than pure copper.
5. Advanced machining processing and patent technology.
2. Trade Information
| Payment Method | T/T or L/C |
| Trade Terms | EXW / FOB / CIF |
| Payment Terms | 30% deposit after signing contract, and the balance should be paid before shipment or after sending B/L copy |
| Delivery way | By sea, land and air |
| Delivery Time | According to the quantity |
3. What we can do:
| Products | We make products as per your design drawings or samples. |
| Material |
1. Stainless Steel 2. Steel: 3. Brass:
4. Bronze: 5.copper: 6.Beryllium copper:
|
| Surface treatment | as per your requirements,such as plating,brush,powder coat, Hot dip galvanized,mirror polishing |
| Certificate | ISO9001:2008, SGS, ROHS,CE |
| Standard | ROHS,ISO, ANSI, ASTM, JIS, DIN, GB |
| Testing tool |
3D projectors, ordinary projectors, all kinds of accurate measuring tools, Salt spraying testers, high temperature resistant testers, low temperature resistant testers |
| Processes |
stamping, CNC machining, casting laser cutting, drilling, tapping, laser welding, butt welding, argon arc welding, CNC turning, surface grinder processing, cylindrical grinder processing, |
1. Competitive Advantage Produts
2. FULL REFUND in case of Bad Quality OR LATE Delivery
3. Confidentiality Agreement "Business Secret CONTRACT"
4. Quality Assurance CONTRACT
5. SMALL order welcomed
6. After Sales Service 24*7
7. Choosing national standard eco-friendly solid brass and Aluminum for main body material.
8. Full production line including Soft connection Process , Softening process, Aluminum Row production process.
9. Checking in every production processes with modern testing machines to insure reliable performance of products.
10. Establishing the key management team to satisfied the customers all over the world.
11. Manufacturing capacity up to 10000-30000pcs Per Month.
Our Product Package:
Regarding the packaging of Aluminum Bar, it depends on the product volume and size, and also most important is your requirements.
Usually, the carton is used to pack all the Aluminum Bar.
In some cases, the wooden case is used to pack several cartons together.
FAQ
Q1.Are you factory?
A.Yes,we are factory for copper and aluminum bus bars since year of 2012.You are welcome to visit our factory at your convenient time.
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q5: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
