Customer satisfy is the eternal pursue of corpoation
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | BG |
| Certification: | ISO9001, SGS |
| Model Number: | I15 |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard export carton package |
| Delivery Time: | Negotiation |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 150 Tons |
| Material:: | 1060 Aluminum | Feature:: | Excellent Electrical Conductivity |
|---|---|---|---|
| Width: | 460mm | Thickness: | 1.5mm |
| Length:: | 219.5mm | Finish: | Nickel Plated |
| Highlight: | copper battery bus bar,battery terminal mount busbars |
||

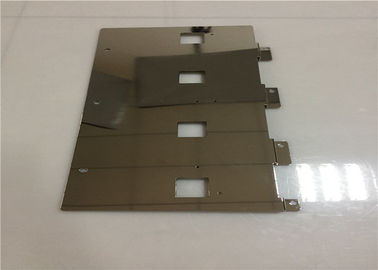

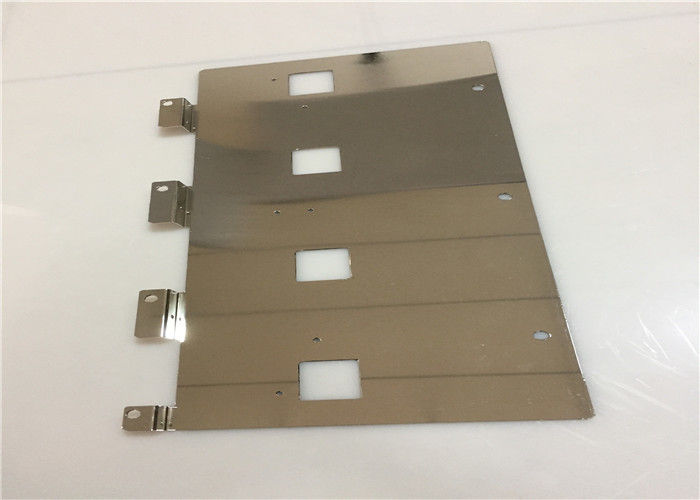

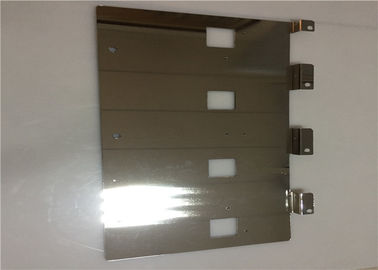

Detail Description
1. Base Information
Material: 1060 Aluminum
Size: Customize
Item: I15
Product Name: aluminum bimetal CCA busbar
Thickness: 1.5mm
Width: 460mm
Length: 219.5mm
Feature: Excellent electrical conductivity
Finish: Nickel Plated
Usage: Electric power industry for connecting conductors.
Technical Parameters:
| Thickness×Width (mm) | 3.0 × (30-950) |
| Weight Ratio (Cu:Al) | 45% : 55% |
| Volume Ratio (Cu:Al) | 20% : 80% |
| Density (g/cm³) | 2.73 |
| Resistivity (Ωmm²/m) | ≤0.024 |
| Tensile Strength (N/mm²) | ≥120 |
| Elongation ( %) | ≥16 |
| Peeling Strength (N/mm²) | ≥12 |
Conventional Types and Sizes:
| Types | Total Thickness | Thickness of copper | Width | Length | Weight(kg/m) |
| BG-1.5*550*650 | 1.5 | 0.3mm+0.3mm | 550 | 650 | 1.46 |
| BG-1.5*220*460 | 1.5 | 0.3mm+0.3mm | 220 | 460 | 0.41 |
| BG-1.5*350*750 | 1.5 | 0.3mm+0.3mm | 350 | 750 | 1.07 |
| BG-3 ×30 | 3mm | 0.3mm+0.3mm | 30mm | ≤3000mm | 0.357 |
| BG-3 ×40 | 3mm | 0.3mm+0.3mm | 40mm | ≤3000mm | 0.476 |
| BG-3 ×50 | 3mm | 0.3mm+0.3mm | 50mm | ≤3000mm | 0.595 |
| BG-3 ×60 | 3mm | 0.3mm+0.3mm | 60mm | ≤3000mm | 0.714 |
| Others | As request |
Features and Advantages:
1. Excellent electrical conductivity.
2. High bonding strength.
3. Available for bending, drilling, stamping etc.
4. lower cost and lighter than pure copper.
5. Advanced machining processing and patent technology.
2. Trade Information
| Payment Method | T/T or L/C |
| Trade Terms | EXW / FOB / CIF |
| Payment Terms | 30% deposit after signing contract, and the balance should be paid before shipment or after sending B/L copy |
| Delivery way | By sea, land and air |
| Delivery Time | According to the quantity |
3. Why choose us:
Fast Delivery
Leading Level R & D Department
Experienced Marketing Manager
Professional Design Department
Accept OEM & ODM
Excellent After-sales Service
More choice for you:
| Material | Aluminum/Stainless Steel/Steel/Titanium/Brass/Plastic |
| Surface Finish | Plain/Polishing/Anodize/Laser Engraving/Powder Coating/Customized |
| Service | OEM, ODM, Design, Customized |
| Tolerance | ±0.005mm |
| MOQ | 100PCS and Sample 1 PCS |
| Lead Time | Sample: 10-15 days; Mass Production: 20-30 days according to order quantity |
| Machining Equipment | CNC Lathe, CNC Milling Machine, Centerless Grinding Machine, EDM Wire Cutting, Laser Cutting, etc. |
| After-sale Service | We will follow up every customer and try every efforts to do better in the future and satisfy every customer |
| Payment terms | T/T, L/C,PayPal, Western Union |
| Sample Service | There will be charges for customized samples |
| Certificate | ISO9001, It can match ROHS, SGS, and environment protection |
Our Promise:
1.Offering design and improvement scheme freely.
2.Offering video and photos with details freely during production.
3.Helping customers to do factory inspection freely for his other Chinese suppliers.
4.Helping customers lacking money to apply for Alibaba finacing.
5.Producing completely according to the accuracy of drawings,assembly measurement to detect function and strict quality control to ensure 0 return rate.
6.99% orders can be ensured delivery time.
7.Quote can be offered within 2 days fastest
8.Delivery time is only 7 days fastest.
9.Responding to the enquiry within 2 hours.
10.The materials we use are optimal.
11.24 hours online service.
12.The lowest price with the same quality and service.
13.Logistics arrangement with high performance to price ratio.
14.The most suitable packing method to different products.
Inspection:
Inspection Euqipment:
We have the chemical elements analysis centre and the mechanical testing centre
which include the following quality control measures:
Spectrographic analysis, magnaflux crack detection, ultrasonic detection, dynamic fatigue testing, hardness testing, proof and ultimate breaking strength test... TUV DIN EN ISO 9001: 2000 & ISO/TS16949 available
In order to ensure the quality of the orders,
our independent QC members to carry out strict inspection at each stage:
(1)Incoming material inspection
(2)Inspection of work-in-progress
(3)Finished product inspection
(4)Random warehouse inspections
All of our operations are strictly compliant with ISO 9001: 2008 guidelines We own automated casting lines, CNC machining, CMM inspection, spectrometers and MT testing equipment, X-ray. To benefit from our strong OEM/ODM capabilities and considerate services, contact us today. We will sincerely create and share success with all clients.
FAQ
1. Q: Are you factory or trading company?
A: We are factory.
2. Q: Where is your factory located?
A: We are located in deyu Road Xiangyang Industrial Zone, Liushi Town,Yueqing City, Zhejiang,China.
3. Q: Can I get sample before making order?
A: We can send you free samples if you tell us the model and size you need, or you send us your drawing.
4. Q: Do you accept small order or trial order?
A: Small order and trial order are acceptable.
5. Q: How long can i get a sample?
A: For standard sample we have in stock, we can send it in 2-3 days.
For customized model, we can send sample within 7-10 days.
6. Q: How do you control your quality of goods?
A: We have inspection department. All goods will be inspected before packing.
7. Q: What's your payment term?
A: For small order, we suggest 100% before production to save time and bank charge.
For bulk order, payment is 30% TT before production 70% TT before delivery.
8.Q: Do you accept our design or OEM size? Could I print logo/brand on the goods?
A: Yes ,we can do any sizes if you tell us your requirements or drawing, and any logo can be printed.
Production Show
