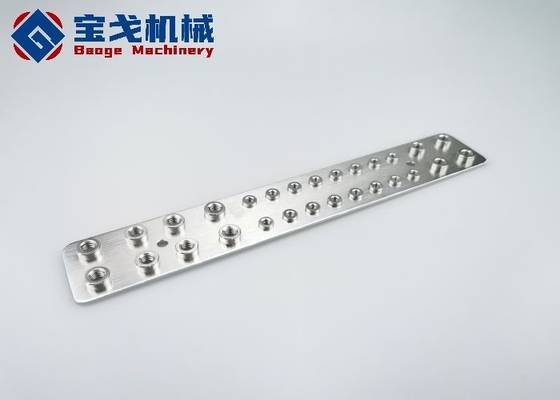

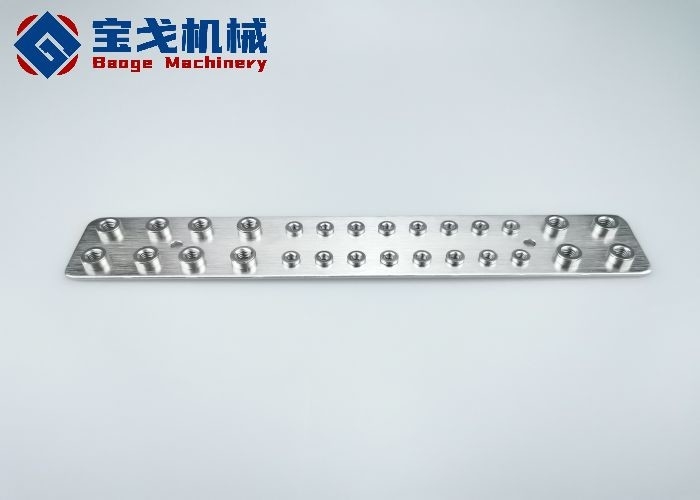

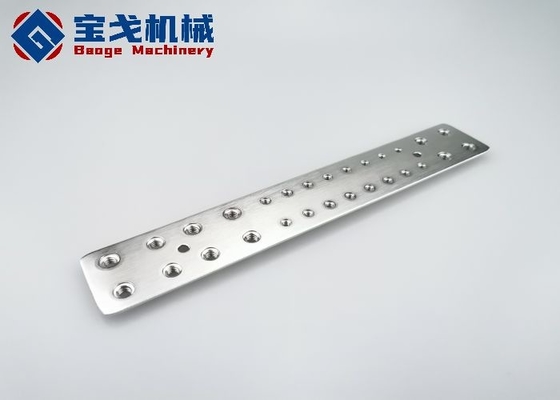

A34 Huawei 5G Electrical Box Power Components Copper Bus Bars Low Voltage

A34 Huawei 5G electrical box power components copper bus bars, low voltage copper bus bars for switchgear

Details:

LOW VOLTAGE COPPER BUSBAR FOR SWITCHGEAR

Low Voltage Switchgear bus bar (or just switchgear or panelboard bus bar) are used in panelboards, switchboards, switchgear, splitters, and all other electrical enclosures and cabinets as the method to carry the current between the incoming conductors and branch circuit breakers.

Baoge Power Components provides custom-designed switchgear bus bar products useful for the following scenarios:

1. High ambient temperature installations – For distribution switchboards and panelboards in high-temperature applications such as smelters, refineries, and chemical processing plants, higher-rated bus bar may be necessary to meet the demands of higher operating temperature.
2. Circuit breaker / Contactor installs and retrofits – When you have circuit breakers or motor starter installations across multiple manufacturers (OEMs) and compatibility issues arise for mounting hardware, custom-designed bus bars are an absolute must.
3. Digital Service Metering – Where you have a commercial or residential digital tenant metering system, a custom switchgear bus bar system can provide easy mounting for individual branch circuit current transformers.
4. Instrument transformer mounting and connections – By taking the bus bar geometry into account, mounting and connecting panel and switchboard instrument transformers can be done more reliably and with easier access for future tap changes.
5. Modular Shrouds and custom DIN rail mounting – Control cabinets are often plagued with stray conductors and difficult mounting situations. By designing the bus bar to custom fit the panels, mounting, troubleshooting, commissioning, and eventual operation becomes much easier for you and your clients.

PROCESSING TECHNOLOGY:

We support OEM service with high-precision CNC machining, cutting, wire cutting, turning, lathing, hobbing, milling, bending, twisting, punching, drilling, tapping, carving, twisting, riveting, electroplating, chemical plating and more; which are the bases of manufacturing copper parts in any customized shapes.

OUR PRODUCTION FACILITIES:

The wide range of products made of copper and other materials are processed by our powerful facilities:
Electric melting furnaces, large power extruders, rolling mills, drawing machines, lathes, CNC machining centers, dieing out pressers and punchers

QUALITY CONTROL:

In order to assure our customer the best quality of product, we are serious with quality control in every procedure. Here are some of equipment for different measurement purposes:

For chemical element and physical performance: spectrometer, tension strength tester and hardness meter.
For dimension and shape: coordinate measuring machine (CMM), optical profilometry, customized go/stop gauge and other basic tools such as vernier caliper, micrometer caliper and height gauge.

ORDER STEPS:

1. Contact us first. We would appreciate it if you could send us your drawing, detailed requirements or description of design.
2. Our engineers check your product design and emulate production, then send back production advice if there are something could be advanced.
3. Quotation and communication on other details.
4. Production and inspection.
5. Packing and shipment.
