Customer satisfy is the eternal pursue of corpoation
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | BG |
| Certification: | ISO9001, SGS |
| Model Number: | A12 |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard export carton package |
| Delivery Time: | Negotiation |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000000 pcs |
| Size:: | 230*40*5mm | Insulation:: | Non |
|---|---|---|---|
| Finish:: | Nickel Plating | Application:: | Power, Automobile |
| Advantage:: | Good Electric Performance/easy Installation | Feature:: | High Conductivity |
| High Light: | copper battery bus bar,copper flexible busbar |
||
Detail Description
Size: 230*40*5mm
Item: A12

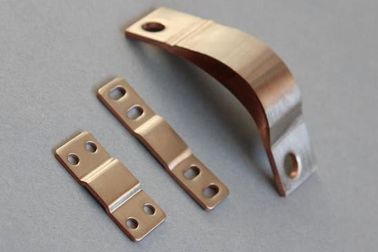

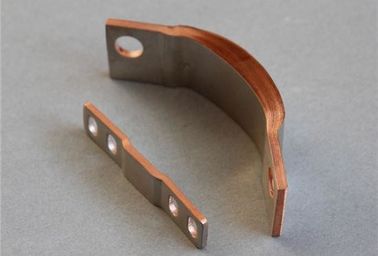

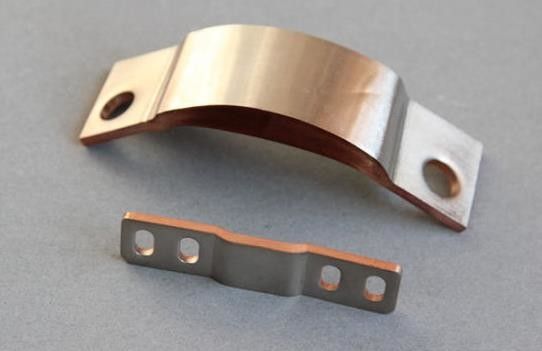

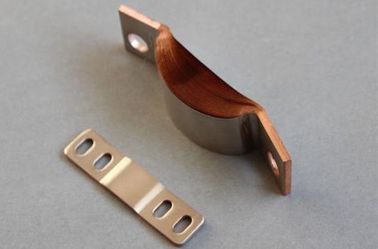

Product Name: Copper Flexible Busbar
Finish: Nickel Plating
Application: Power, Automobile
Feature: high conductivity
Insulation: Non
Drilling: Without
Advantage: good electric performance/easy installation
Technical features of copper bus bar:
1. Material is of fire-resistant PVC and redl copper
2. Current rating is up to 125A
3. Rated voltage is up to 415V
4. Applicable ambient temperature -25~+50
5. Standard length 1m, other length tol be made upon request.
6. Good conductivity, low contact resistance, safe and reliable.
Products feature:
Flexible copper connectors in solderless pressed designnonperishable, higsoft, nonperishable, high conductivity.
Standard design
Uncoated or tinned Copper foils 0.1mm (standard) or 0,15/0,20 mm on request with solderless pressed contact areas made out of tinned or bear Copper tubes.
Contact areas
Contact areas rectangular without bending protection (standard). With or bending protection only on one side on request. It is also possible to change the length of all contact areas.
Drilling
Standard design without drilling. On request drilling according to customers' wishes are available.
Insulation
On request deliveradle also in non-insulated design. Standard material for insulated design is a PVC-tube or materials on request. Liquid resistances Available with protected insulation against liquids or moisture on request.
Special designs
In special design we deliver also connectors made out of tinned wires or with coated contact areas (tin-silver plated) or in coordination with your application according to your drawings samples or wishes.
1. thermal conductivity/seal airtight/electromagnetic radiation shielding
2. good electric performance/easy installation
2. Trade Information
| Payment Method | T/T or L/C |
| Trade Terms | EXW / FOB / CIF |
| Payment Terms | 30% deposit after signing contract, and the balance should be paid before shipment or after sending B/L copy |
| Delivery way | By sea, land and air |
| Delivery Time | According to the quantity |
3. Why choose our company:
► We are manufacturers of bus bars since year of 2001 with automatic machines, professional production and inspection teams.
► Our staff s are all with more than 5 years working experience. We will supply you considerate pre-sale and after sale service
► Fast delivery for samples and bulk quantity,we have raw material in stock
► OEM/DEM is welcome.
► We are factory with competitive price and punctual delivery time.
► Inspect every product before delivery to ensure high quality.Our products have gained ISO9001 and IATFcertificate.
► Guarantee is 15-20years for flexible copper bus bar.
4. The feature of our copper busbar:
► Excellent electrical conductivity.
► High bonding strength.
► Pure T2 copper.
► Copper foil busbar to be used in transformer has a profile to allow for transformer thermal expansion and contraction
► Made of copper foil provides maximum flexibility and reduces vibration . It is typically used for copper busbar systems, transformer connections and High Voltage Switchgear.
| Type | Holes | Specification (mm) |
Actual Thickness and Width(mm) |
Centre Distance (mm) |
Overall Length (mm) |
| Zero busbar |
5 | 2*15 | 1.5*15 | 85 | 98 |
| 2*20 | 1.8*20 | 93 | 108 | ||
| 7 | 2*15 | 1.5*15 | 108 | 121 | |
| 2*20 | 1.8*20 | 120 | 135 | ||
| 10 | 2*15 | 1.5*15 | 142 | 156 | |
| 2*20 | 1.8*20 | 160 | 175 | ||
| Floor busbar |
5 | 2*15 | 1.5*15 | 91 | 103 |
| 2*20 | 1.8*20 | 99 | 112 | ||
| 7 | 2*15 | 1.5*15 | 115 | 128 | |
| 2*20 | 1.8*20 | 125 | 138 | ||
| 10 | 2*15 | 1.5*15 | 149 | 162 | |
| 2*20 | 1.8*20 | 165 | 178 |
Advantage
Our sales department we help and learn from each other,based on our proficiencu in every facet of our products,
we understand customers’ demands deeply and solve problems promptly.
we concentrate on one stop and one-package service.
With the principle of customer service from design,sampling to production.
We solve every customer concern
FAQ
Q1.Are you factory?
A.Yes,we are factory for copper and aluminum bus bars since year of 2012.You are welcome to visit our factory at your convenient time.
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 5-7 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
