Insulated Tube Aluminum Bus Bar 32*32*2.7mm With Good Safety Performance

Insulated Tube Aluminum Bus Bar 32*32*2.7mm With Good Safety Performance

  • Insulated Tube Aluminum Bus Bar 32*32*2.7mm With Good Safety Performance
  • Insulated Tube Aluminum Bus Bar 32*32*2.7mm With Good Safety Performance
Insulated Tube Aluminum Bus Bar 32*32*2.7mm With Good Safety Performance
Product Details:
Place of Origin: Guangdong, China
Brand Name: BG
Certification: ISO9001, SGS
Model Number: D06
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Standard export carton package
Delivery Time: Negotiation
Payment Terms: L/C, T/T
Supply Ability: 150 Tons
Contact Now
Detailed Product Description
Housing:: PVC Application:: Cranes, Monorails, Electric Hoists, Electrical Tools
HS Code:: 85444929 Feature:: High Current Transmission
Size:: 32*32*2.7mm Material:: Aluminum
High Light:

silver bus bar

,

electrical panel bus bar

Insulated Tube Aluminum Bus Bar 32*32*2.7mm With Good Safety Performance

Detail Description



Material: Aluminum

Size: 32*32*2.7mm

Item: D06

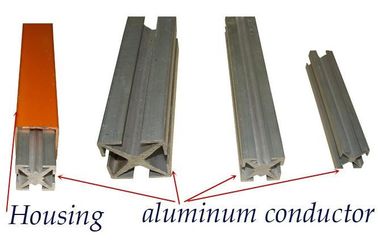

Product Name: Insulated Tube Aluminum Bus Bar System

Type: Single Phase Insulated

Housing: PVC

Application: Cranes, Monorails, Electric Hoists, Electrical Tools

Standard Length: 4.5 M/Piece

HS Code: 85444929

Feature: High current transmission



Specification:

Specification Rated Current Conductor Housing Ambient Resistance(Ω)
  (A) Cross Section Thickness Temperature 50HZ/380V
BG-400 400A       0.010907
BG-500 500A 32x32 2.7mm   0.009848
BG-630 630A       0.008549
BG-800 800A       0.006733
BG-1000 1000A       0.004977
BG-1250 1250A   3.0mm 35ºC 0.003095
BG-1600 1600A 50x50     0.002441
BG-2000 2000A       0.010907
BG-2500 2500A       0.001929
BG-3150 3150A 72x72 3.0mm   0.001715
BG-4000 4000A       0.001323



Feature:



Rated Voltage: 660V/380V

Rate of Frequency: 50HZ/60HZ

Rated Current: 250A-- 4000A

Pollution Level: III

Housing IP: IP55

Altitude: <2000 Meters



Advantage:



High current transmission

Good safety performance

Compact structure

Small space hold

Easy installation

Low cost



2. Trade Information



Payment Method T/T or L/C
Trade Terms EXW / FOB / CIF
Payment Terms 30% deposit after signing contract, and the balance should be paid before shipment or after sending B/L copy
Delivery way By sea, land and air
Delivery Time According to the quantity





3. What we can do:



Products We make products as per your design drawings or samples.
Material

1. Stainless Steel 2. Steel: 3. Brass:



4. Bronze: 5.copper: 6.Beryllium copper:


7. Iron: 8. Aluminum: 9. Rubber:


10.Silicone 11.Zinc: 12.Zamak:

Surface treatment as per your requirements,such as plating,brush,powder coat, Hot dip galvanized,mirror polishing
Certificate ISO9001:2008, SGS, ROHS,CE
Standard ROHS,ISO, ANSI, ASTM, JIS, DIN, GB
Testing tool

3D projectors, ordinary projectors, all kinds of accurate measuring tools,

Salt spraying testers, high temperature resistant testers, low temperature resistant testers

Processes

stamping, CNC machining, casting

laser cutting, drilling, tapping,

laser welding, butt welding, argon arc welding, CNC turning,

surface grinder processing, cylindrical grinder processing,



Our Service:



1. Competitive Advantage Produts
2. FULL REFUND in case of Bad Quality OR LATE Delivery
3. Confidentiality Agreement "Business Secret CONTRACT"
4. Quality Assurance CONTRACT
5. SMALL order welcomed
6. After Sales Service 24*7
7. Choosing national standard eco-friendly solid brass and Aluminum for main body material.
8. Full production line including Soft connection Process , Softening process, Aluminum Row production process.
9. Checking in every production processes with modern testing machines to insure reliable performance of products.
10. Establishing the key management team to satisfied the customers all over the world.
11. Manufacturing capacity up to 10000-30000pcs Per Month.





Our Product Package:



Regarding the packaging of Aluminum Bar, it depends on the product volume and size, and also most important is your requirements.
Usually, the carton is used to pack all the Aluminum Bar.
In some cases, the wooden case is used to pack several cartons together.

Insulated Tube Aluminum Bus Bar 32*32*2.7mm With Good Safety Performance 0





FAQ



Q1.Are you factory?

A.Yes,we are factory for copper and aluminum bus bars since year of 2012.You are welcome to visit our factory at your convenient time.



Q1. What is your terms of packing?

A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.



Q3. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.

Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q5: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
