Customer satisfy is the eternal pursue of corpoation
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | BG |
| Certification: | ISO9001, SGS |
| Model Number: | Nickel Plated Copper Bus Bar |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard export carton package |
| Delivery Time: | Negotiation |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000000 pcs |
| Name: | Nickel Plated Copper Bus Bar | Size: | Customized Size |
|---|---|---|---|
| Thickness: | 4.0mm | Width: | 105mm |
| Length: | 158mm | Usage: | Transformer Connections |
| High Light: | copper battery bus bar,electrical grade copper bar |
||
Excellent Electrical Conductivity Nickel Plated Copper Bus Bar For Transformer Connections
Purpose
The use of copper is much wider than pure iron. Every year, 50% of copper is electrolyzed to pure copper for use in the electrical industry. The copper mentioned here must be very pure. It contains more than 99.95% copper. A very small amount of impurities, especially phosphorus, arsenic and aluminium, will greatly reduce the conductivity of copper. It is mainly used to make electrical equipment such as generators, buses, cables, switchgear, transformers, heat exchangers, pipes, flat-plate collectors of solar heating devices and other heat conducting devices. Oxygen content in copper (which is easy to mix with a small amount of oxygen in copper smelting) has a great influence on conductivity. Copper used in electrical industry must be oxygen-free copper. In addition, impurities such as lead, antimony and bismuth can not bind the crystals of copper together, resulting in hot brittleness and affecting the processing of pure copper. This kind of pure copper with high purity is usually refined by electrolysis: Impure Copper (i.e. crude copper) is used as anode, pure copper as cathode, and copper sulfate solution as electrolyte. When the current passes through, the Impure Copper on the anode melts gradually, and the pure copper deposits gradually on the cathode. The purity of copper obtained by this refinement can reach 99.99%.
Copper is also used in short circuit rings of motors, electromagnetic heating inductors, and high-power electronic components, wiring terminals and so on.
Copper is also used in doors, windows, armrests and other furniture and decoration.
Nickel Plated Copper Bus Bar Details
| Material: T2 Red copper |
| Size: Customize |
| Item: |
| Product Name: Nickel Plated Copper Bus Bar |
| Thickness: 4.0mm |
| Width: 105mm |
| Length: 158mm |
| Feature: Excellent electrical conductivity |
| Finish: Plate with nickel |
| Usage: Transformer Connections |
Nickel Plated Copper Bus Bar Technical Parameters:
| Thickness×Width (mm) | 1.5 -20× (15-500) |
| Copper content | 99.98% |
| Tensile Strength (MPa) | ≥250 |
| Elongation ( %) | 45-50% |
| melting Point | 1083℃ |
Nickel Plated Copper Bus Bar Conventional Types and Sizes:
| Types | Total Thickness | Thickness of copper | Width | Length | Weight(kg/m) |
| BG-1.0*550*650 | 1.0 | 0.3mm+0.3mm | 550 | 650 | 3.18 |
| BG-5.0*106*412 | 5.0 | 0.3mm+0.3mm | 106 | 412 | 1.94 |
| BG-6.0*268*333 | 6.0 | 0.3mm+0.3mm | 268 | 333 | 4.77 |
| BG-3 ×30 | 3 | 0.3mm+0.3mm | 30mm | ≤6000mm | 4.806 |
| BG-4 ×40 | 4 | 0.3mm+0.3mm | 40mm | ≤6000mm | 8.544 |
| BG-5 ×50 | 5 | 0.3mm+0.3mm | 50mm | ≤6000mm | 13.35 |
| BG-6 ×60 | 6 | 0.3mm+0.3mm | 60mm | ≤6000mm | 19.224 |
| BG-8*80 | 8 | 0.3mm+0.3mm | 80mm | ≤6000mm | 34.176 |
| BG-10*100 | 10 | 0.3mm+0.3mm | 100mm | ≤6000mm | 53.4 |
| BG-12*120 | 12 | 0.3mm+0.3mm | 120mm | ≤6000mm | 76.896 |
| Others | As request |
FAQ
Q1.Are you factory?
A.Yes,we are factory for copper and aluminum bus bars since year of 2012.You are welcome to visit our factory at your convenient time.
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

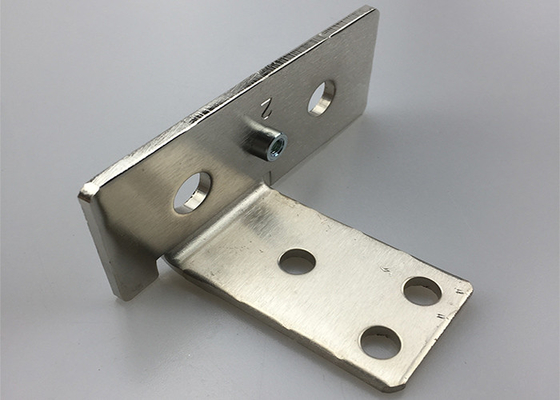

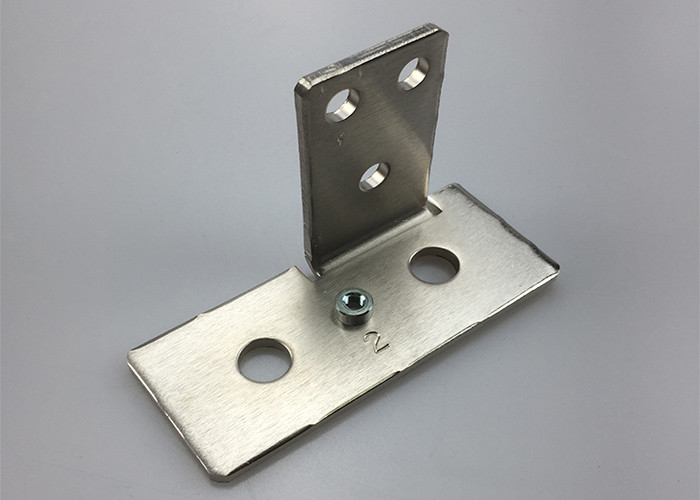

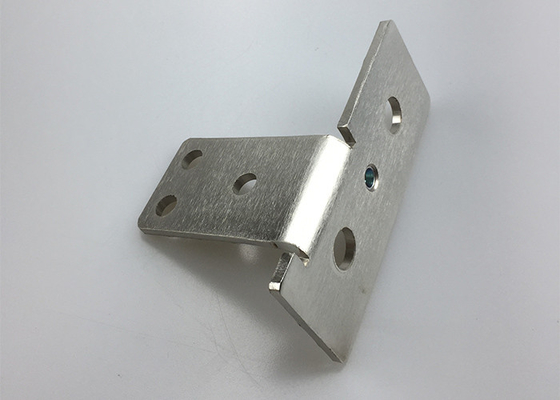

Nickel Plated Copper Bus Bar Show
