Customer satisfy is the eternal pursue of corpoation
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | BG |
| Certification: | ISO9001, SGS |
| Model Number: | P04 |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard export carton package |
| Delivery Time: | Negotiation |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 150 Tons |
| Name: | Battery Terminal Busbar | Material: | Pure Copper |
|---|---|---|---|
| Size: | Customize | Thickness: | 0.5-3mm Or Customize |
| Electricity: | 100-2000A | Surface: | Nickel Plated |
| High Light: | battery terminal mount busbars,car battery bus bar |
||

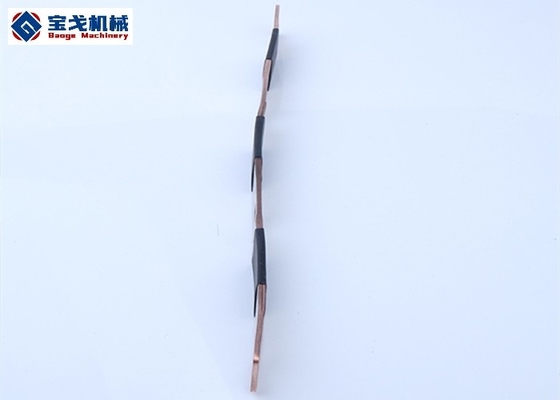

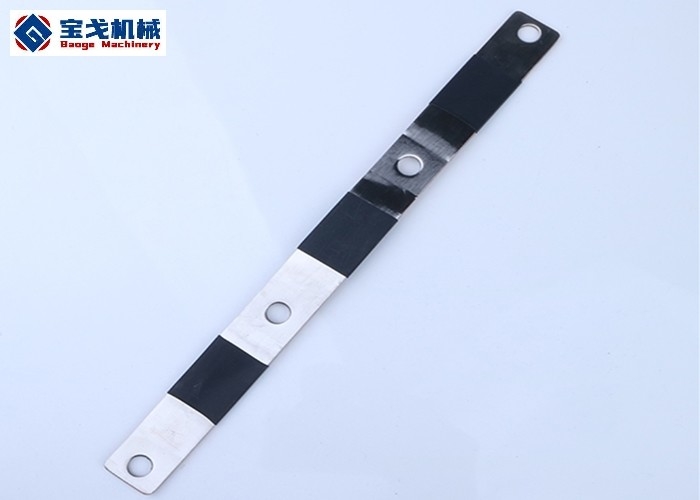

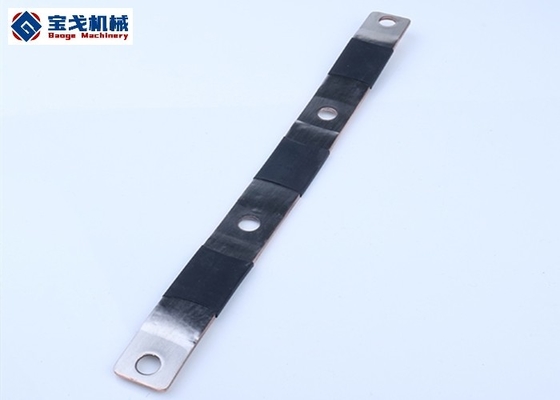

Bare Flat Copper Battery Terminal Busbar With Black Heat Shrink Tube
Advantage
1. Environmental protection
2. Nickel material
3. Corrosion resistant
4. High quality
5. Durable
| producut name | c11000 bare flat copper battery busbar with black heat shrink tube |
| Item | P04 |
| material | pure copper |
| size | customize |
| thhickness | 0.5-3mm or customize |
| Surface | Nickel Plated |
| Electricity | 100-2000A |
| Usage | Battery pack, HV or LV battery pack like 12V battery, 24 battery or 48V large battery. |
| Surface | PE heat shrink tubes and PVC dipping |
| Craft | Solder the Nickel tag onto Nickel Plated Copper sheet |
| Flexible bus bar connectors are developed from high conductivity based electrolytic grade copper sheets/foils. | ||||
| Material Standard | GB : T2 Copper with Min. 99.9% | |||
| DIN: E-Cu58 (Number: 2.0065) | ||||
| EN: Cu-ETP ( Number: CW004A) | ||||
| ISO: Cu-ETP | ||||
| UNS: C11000 | ||||
| JIS: C1100 | ||||
| BS: C101 | ||||
| Other Material also can be customized | ||||
| Copper Foil of | 0.03/0.1/0.2/0.3/0.5/1.0mm,depend on bus bar structure, | |||
| Single Layer Thickness | we will advise suitable thickness | |||
| Copper foll width | 10mm-300mm | |||
| Insulation surface | PVC dipping ,PE heat shrink tubes and Insulation Spray. | |||
| Surface Plating | Nickel, tin or silver plated etc | |||
| Plating Thickness:Normally 3um to 12um | ||||
| or upon customers' request | ||||
| Resistance | 0.00001Ω | |||
| Conductivity | ||||
| 57% | ||||
| Flame Retardant/Fire Resistance | UL94-V-0 or upon you request | |||
| Operating Temperature | ||||
| -45 to +150 ºC | ||||
| Sample/Trial Order | In 3-7 working days according to different bus bar structure and manufacture process | |||
| Delivery Time | ||||
Why choose us:
Fast Delivery
Leading Level R & D Department
Experienced Marketing Manager
Professional Design Department
Accept OEM & ODM
Excellent After-sales Service
| Welcome to Baoge | ||||
| We specialize in R & D and production of high-end new energy lithium battery soft connection, bus bar and other connector manufacturers. | ||||
| Supply industry | rail transit, new energy vehicles, ships, energy storage systems, drone battery pack connection, etc | |||
| Supply products | copper and aluminum bus bar | copper soft connection | aluminum soft connection | |
| braided soft connection | charging pile bus bar | high and low voltage soft connection | ||
| copper nickel bus bar | aluminum nickel bus bar | rail transit connection terminals | ||
Our Promise:
1.Offering design and improvement scheme freely.
2.Offering video and photos with details freely during production.
3.Helping customers to do factory inspection freely for his other Chinese suppliers.
4.Helping customers lacking money to apply for Alibaba finacing.
5.Producing completely according to the accuracy of drawings,assembly measurement to detect function and strict quality control to ensure 0 return rate.
6.99% orders can be ensured delivery time.
7.Quote can be offered within 2 days fastest
8.Delivery time is only 7 days fastest.
9.Responding to the enquiry within 2 hours.
10.The materials we use are optimal.
11.24 hours online service.
12.The lowest price with the same quality and service.
13.Logistics arrangement with high performance to price ratio.
14.The most suitable packing method to different products.
Inspection:
Inspection Euqipment:
We have the chemical elements analysis centre and the mechanical testing centre
which include the following quality control measures:
Spectrographic analysis, magnaflux crack detection, ultrasonic detection, dynamic fatigue testing, hardness testing, proof and ultimate breaking strength test... TUV DIN EN ISO 9001: 2000 & ISO/TS16949 available
In order to ensure the quality of the orders,
our independent QC members to carry out strict inspection at each stage:
(1)Incoming material inspection
(2)Inspection of work-in-progress
(3)Finished product inspection
(4)Random warehouse inspections
All of our operations are strictly compliant with ISO 9001: 2008 guidelines We own automated casting lines, CNC machining, CMM inspection, spectrometers and MT testing equipment, X-ray. To benefit from our strong OEM/ODM capabilities and considerate services, contact us today. We will sincerely create and share success with all clients.
FAQ
1. Q: Are you factory or trading company?
A: We are factory.
2. Q: Where is your factory located?
A: We are located in deyu Road Xiangyang Industrial Zone, Liushi Town,Yueqing City, Zhejiang,China.
3. Q: Can I get sample before making order?
A: We can send you free samples if you tell us the model and size you need, or you send us your drawing.
4. Q: Do you accept small order or trial order?
A: Small order and trial order are acceptable.
5. Q: How long can i get a sample?
A: For standard sample we have in stock, we can send it in 2-3 days.
For customized model, we can send sample within 7-10 days.
6. Q: How do you control your quality of goods?
A: We have inspection department. All goods will be inspected before packing.
7. Q: What's your payment term?
A: For small order, we suggest 100% before production to save time and bank charge.
For bulk order, payment is 30% TT before production 70% TT before delivery.
8.Q: Do you accept our design or OEM size? Could I print logo/brand on the goods?
A: Yes ,we can do any sizes if you tell us your requirements or drawing, and any logo can be printed.
Production Show
