Product Details:
Payment & Shipping Terms:
|
| Material:: | Pure Copper | Product Name:: | Copper Ground Bus Bar |
|---|---|---|---|
| Conductor Size:: | 1- 5 AWG | Finish:: | Nickel Plated |
| Feature:: | Low-resistance | Cu(min):: | 99.9% |
| High Light: | electrical grade copper bar,copper flexible busbar |
||
Detail Description

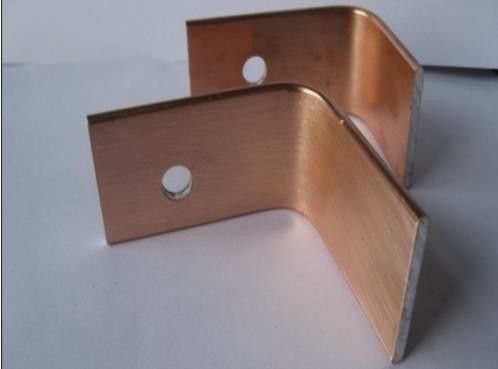

Material: Pure copper
Size: 150*80*6mm/Customize
Item: A08
Product Name: copper ground bus bar
Conductor Size: 1- 5 AWG
Type: Power Distribution, Power Distribution
Application: Grounding System
Finish: Nickel Plated
Feature: low-resistance
Experience: More than 15 years
More details:
| Material Available | Pure Copper 99.95% or Copper Clad Steel or Tinned Copper |
| Length | 300mm-6000mm |
| Width | 20mm-600mm |
| Thickness | 2mm-20mm |
| Surface | Nickel, Tinned or Galvanized Surface Is Avaliable |
| Service Life | More Than 10 Years |
| Characters | Strong Anticorrosion, High Conductivity |
| Holes | Size& Quantity Customised |
| Accessories | Galvanized Steel holder, Insulator, Screw Nuts&Bolts |
2. Trade Information
| Payment Method | T/T or L/C |
| Trade Terms | EXW / FOB / CIF |
| Payment Terms | 30% deposit after signing contract, and the balance should be paid before shipment or after sending B/L copy |
| Delivery way | By sea, land and air |
| Delivery Time | According to the quantity |
3. Why choose our company:
► We are manufacturers of bus bars since year of 2001 with automatic machines, professional production and inspection teams.
► Our staff s are all with more than 5 years working experience. We will supply you considerate pre-sale and after sale service
► Fast delivery for samples and bulk quantity,we have raw material in stock
► OEM/DEM is welcome.
► We are factory with competitive price and punctual delivery time.
► Inspect every product before delivery to ensure high quality.Our products have gained ISO9001 and IATFcertificate.
► Guarantee is 15-20years for flexible copper bus bar.
4. The feature of our copper busbar:
► Excellent electrical conductivity.
► High bonding strength.
► Pure T2 copper.
► Copper foil busbar to be used in transformer has a profile to allow for transformer thermal expansion and contraction
► Made of copper foil provides maximum flexibility and reduces vibration . It is typically used for copper busbar systems, transformer connections and High Voltage Switchgear.
| Type | Holes | Specification (mm) |
Actual Thickness and Width(mm) |
Centre Distance (mm) |
Overall Length (mm) |
| Zero busbar |
5 | 2*15 | 1.5*15 | 85 | 98 |
| 2*20 | 1.8*20 | 93 | 108 | ||
| 7 | 2*15 | 1.5*15 | 108 | 121 | |
| 2*20 | 1.8*20 | 120 | 135 | ||
| 10 | 2*15 | 1.5*15 | 142 | 156 | |
| 2*20 | 1.8*20 | 160 | 175 | ||
| Floor busbar |
5 | 2*15 | 1.5*15 | 91 | 103 |
| 2*20 | 1.8*20 | 99 | 112 | ||
| 7 | 2*15 | 1.5*15 | 115 | 128 | |
| 2*20 | 1.8*20 | 125 | 138 | ||
| 10 | 2*15 | 1.5*15 | 149 | 162 | |
| 2*20 | 1.8*20 | 165 | 178 |
Advantage
Our sales department we help and learn from each other,based on our proficiencu in every facet of our products,
we understand customers’ demands deeply and solve problems promptly.
we concentrate on one stop and one-package service.
With the principle of customer service from design,sampling to production.
We solve every customer concern
FAQ
Q1.Are you factory?
A.Yes,we are factory for copper and aluminum bus bars since year of 2012.You are welcome to visit our factory at your convenient time.
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 5-7 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
