Product Details:
Payment & Shipping Terms:
|
| Copper:: | C1100, C11000, T2 | Product Name:: | Insulated Flexible Copper Busbar |
|---|---|---|---|
| Size:: | Customized | Copper Foil:: | 0.035mm |
| Rate Voltage:: | 1-40.5kv | Usage:: | Power Distribution Boards |
| High Light: | silver plated copper bus bar,power distribution busbar |
||
Detail Description
Material: Copper
Size: Customized
Item: C07

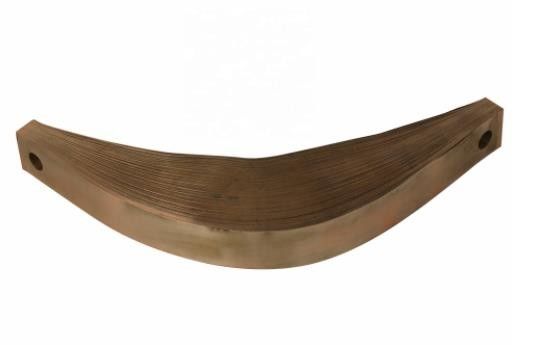

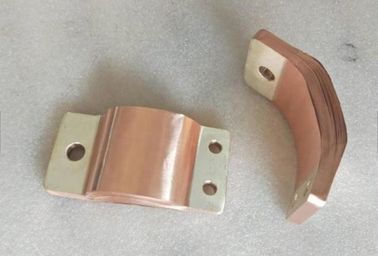

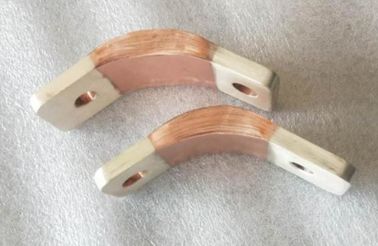

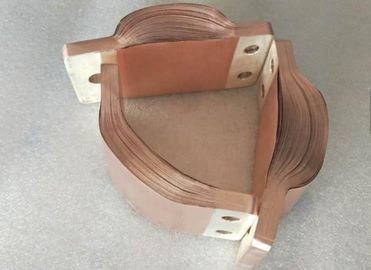

Product Name: Insulated flexible copper busbar
Copper Foil: 0.035mm
Rate Current: 10-8000A
Rate Voltage: 1-40.5kv
Type: 10KV copper foil flexible busbar
Usage: power distribution boards
Cross section: 50-4000 SQMM
2. Trade Information
| Payment Method | T/T or L/C |
| Trade Terms | EXW / FOB / CIF |
| Payment Terms | 30% deposit after signing contract, and the balance should be paid before shipment or after sending B/L copy |
| Delivery way | By sea, land and air |
| Delivery Time | According to the quantity |
3. Feature:
Technical parameter table of pressure welding / brazing
| ED copper | Section | A | B | S | L | H | Holes Diameter | End drilling | Current capacity |
| mm2 | mm | mm | mm | mm | mm | mm | A | ||
| BG | 200 | 50 | 40 | 5 | 180 | 40 | 13 | W1 | 600 |
| 200/180/40 | |||||||||
| BG | 200 | 50 | 40 | 5 | 230 | 40 | 13 | W1 | 800 |
| 200/230/40 | |||||||||
| BG | 320 | 50 | 40 | 8 | 230 | 43 | 13 | W1 | 800 |
| 320/230/40 | |||||||||
| BG | 400 | 50 | 40 | 10 | 230 | 45 | 13 | W1 | 900 |
| 400/230/40 | |||||||||
| BG | 250 | 60 | 50 | 5 | 250 | 45 | 13 | W1 | 700 |
| 250/250/50 | |||||||||
| BG | 400 | 60 | 50 | 8 | 250 | 48 | 13 | W1 | 950 |
| 400/250/50 | |||||||||
| BG | 500 | 60 | 50 | 10 | 250 | 50 | 13 | W1 | 1100 |
| 500/250/50 | |||||||||
| BG | 480 | 90 | 60 | 8 | 300 | 70 | 13 | W2 | 1100 |
| 480/300/60 | |||||||||
| BG | 600 | 90 | 60 | 10 | 300 | 70 | 13 | W2 | 1200 |
| 600/300/60 | |||||||||
| BG | 640 | 90 | 60 | 8 | 300 | 70 | 13 | W4 | 1350 |
| 640/300/80 | |||||||||
| BG | 800 | 90 | 60 | 10 | 300 | 70 | 13 | W4 | 1500 |
| 800/350/100 | |||||||||
| BG | 960 | 90 | 60 | 12 | 300 | 70 | 13 | W4 | 1700 |
| 960/300/80 | |||||||||
| BG | 800 | 110 | 100 | 8 | 300 | 80 | 13 | W5 | 1550 |
| 800/350/50 | |||||||||
| BG 1000/350/100 |
1000 | 110 | 100 | 10 | 350 | 80 | 13 | W5 | 1800 |
| BG 1200/350/100 |
1200 | 110 | 100 | 12 | 350 | 80 | 13 | W5 | 1900 |
| BG 1200/400/120 |
1200 | 130 | 120 | 10 | 400 | 80 | 13 | W7 | 2000 |
| BG 1440/400/120 | 1440 | 130 | 120 | 12 | 400 | 80 | 13 | W7 | 2200 |
Why choose us:
1, About us: Standard workshop & comfortable office. Baoge is built in 2001. We are specialized in producing new energy products like copper busbar and covers.
2, Equipment & technology: Professional team & First-class equipments. With experienced workers and automatic machines , we guarantee good quality and fast delivery time.
3, Service: All copper busbar size and models can be customzied. Sample order or small order is accepted. Welcome to inquiry us, we'll give you reply in 24 hours.
Our Service:
1) Free samples
2) Free mold for custom size if you have large quantity
3) Best after sales service
4) Offer C/O, Form E, Form A etc
5) 12 automatic production flow lines with high precision machinery
6) ISO9001, ROHS ,REACH Standard
7) Welcome to visit our factory at any time.
Application:
FAQ
1. Q: Are you factory or trading company?
A: We are factory.
2. Q: Where is your factory located?
A: We are located in deyu Road Xiangyang Industrial Zone, Liushi Town,Yueqing City, Zhejiang,China.
3. Q: Can I get sample before making order?
A: We can send you free samples if you tell us the model and size you need, or you send us your drawing.
4. Q: Do you accept small order or trial order?
A: Small order and trial order are acceptable.
5. Q: How long can i get a sample?
A: For standard sample we have in stock, we can send it in 2-3 days.
For customized model, we can send sample within 7-10 days.
6. Q: How do you control your quality of goods?
A: We have inspection department. All goods will be inspected before packing.
7. Q: What's your payment term?
A: For small order, we suggest 100% before production to save time and bank charge.
For bulk order, payment is 30% TT before production 70% TT before delivery.
8.Q: Do you accept our design or OEM size? Could I print logo/brand on the goods?
A: Yes ,we can do any sizes if you tell us your requirements or drawing, and any logo can be printed.
Technical parameters
See the table below.
The width, length and drilling holes not included in the table below can be processed according to user requirements.
The allowable current carrying capacity is a reference value. This value is related to the installation and use conditions of the soft connector.
