Product Details:
Payment & Shipping Terms:
|
| Name: | Nickel Plated Copper Bus Bar | Size: | Customize |
|---|---|---|---|
| Thickness: | 3.0mm | Width: | 55mm |
| Length: | 137.5mm | Feature: | Flexible |
| Finish: | Plate With Nickel | Usage: | Switchboard |
| High Light: | copper battery bus bar,electrical grade copper bar |
||

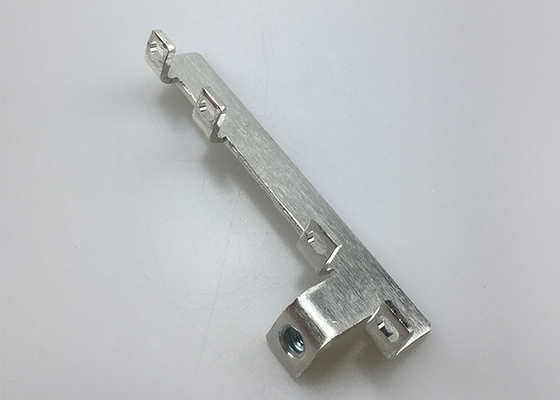

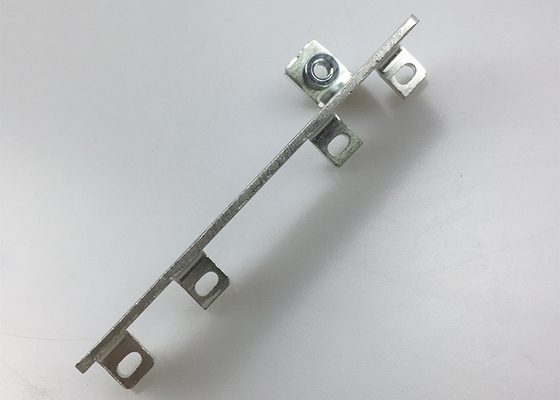

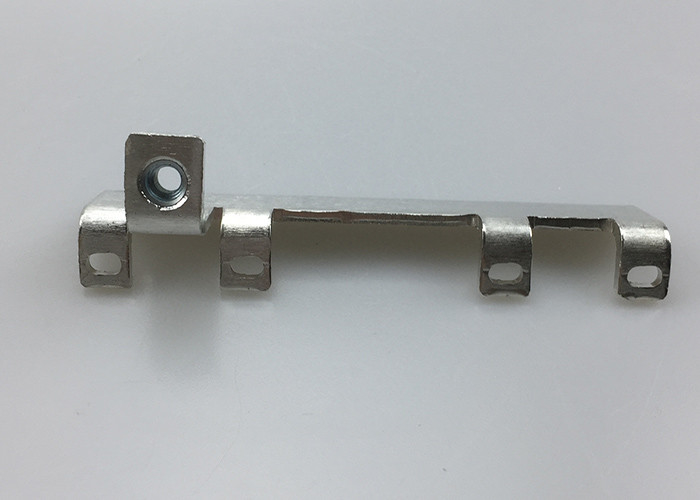

Flexible Nickel Plated Copper Bus Bar For Switchboard Customized Size
Nickel Plated Copper Bus Bar Introduction
1) Insulated Coating Tinned Copper Busbar Connector is make of T2 copper material, which is 99.9% copper contented. It make the products excellect conductivity with less impurities.
2) The surface of Insulated Coating Tinned Copper Busbar Connector is plated with tin to protect copper busbar from oxidation or creating aerugo. Other plating like nickle or silver is also acceptable as customer requirments. Clean and free-from- burr holes make sure good contact of bolts and busbar.
3) The copper busbar is coated with 2:1 PE heat shrink tube. They can also be coated with 4:1 heat shrink tubes, soft PVC or epoxy powder. They have have different insulation degree.
3) Tin Plated Square End Copper Bus Bar is shaped with electrical wiring cut from whole copper plate or cut from available copper bars if the width and thickness is normal.
Nickel Plated Copper Bus Bar Details
| Material: T2 Red copper |
| Size: Customize |
| Item: |
| Product Name: Oxygen-free copper |
| Thickness: 3.0mm |
| Width: 55mm |
| Length: 137.5mm |
| Feature: Flexible |
| Finish: Plate with nickel |
| Usage: Switchboard |
Nickel Plated Copper Bus Bar Technical Parameters:
| Thickness×Width (mm) | 1.5 -20× (15-500) |
| Copper content | 99.98% |
| Density (g/cm³) | 8.9 |
| Resistivity (Ωmm²/m) | 0.018 |
| Tensile Strength (MPa) | ≥250 |
| Elongation ( %) | 45-50% |
| melting Point | 1083℃ |
Nickel Plated Copper Bus Bar Conventional Types and Sizes:
| Types | Total Thickness | Thickness of copper | Width | Length | Weight(kg/m) |
| BG-1.0*550*650 | 1.0 | 0.3mm+0.3mm | 550 | 650 | 3.18 |
| BG-3 ×30 | 3 | 0.3mm+0.3mm | 30mm | ≤6000mm | 4.806 |
| BG-4 ×40 | 4 | 0.3mm+0.3mm | 40mm | ≤6000mm | 8.544 |
| BG-5 ×50 | 5 | 0.3mm+0.3mm | 50mm | ≤6000mm | 13.35 |
| BG-6 ×60 | 6 | 0.3mm+0.3mm | 60mm | ≤6000mm | 19.224 |
| BG-8*80 | 8 | 0.3mm+0.3mm | 80mm | ≤6000mm | 34.176 |
| BG-10*100 | 10 | 0.3mm+0.3mm | 100mm | ≤6000mm | 53.4 |
| BG-12*120 | 12 | 0.3mm+0.3mm | 120mm | ≤6000mm | 76.896 |
| Others | As request |
The feature of our copper busbar:
► Excellent electrical conductivity.
► High bonding strength.
► Pure T2 copper.
► Copper foil busbar to be used in transformer has a profile to allow for transformer thermal expansion and contraction
► Made of copper foil provides maximum flexibility and reduces vibration . It is typically used for copper busbar systems, transformer connections and High Voltage Switchgear.
FAQ
Q1.Are you factory?
A.Yes,we are factory for copper and aluminum bus bars since year of 2012.You are welcome to visit our factory at your convenient time.
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
