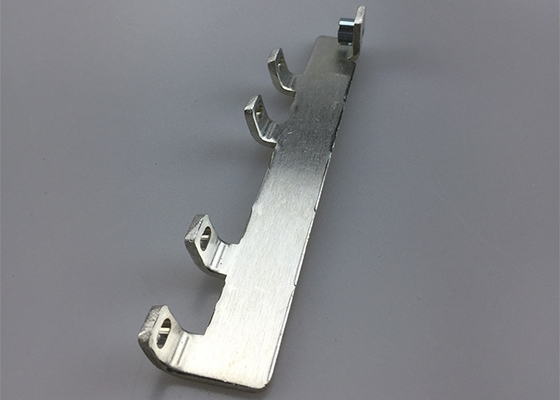

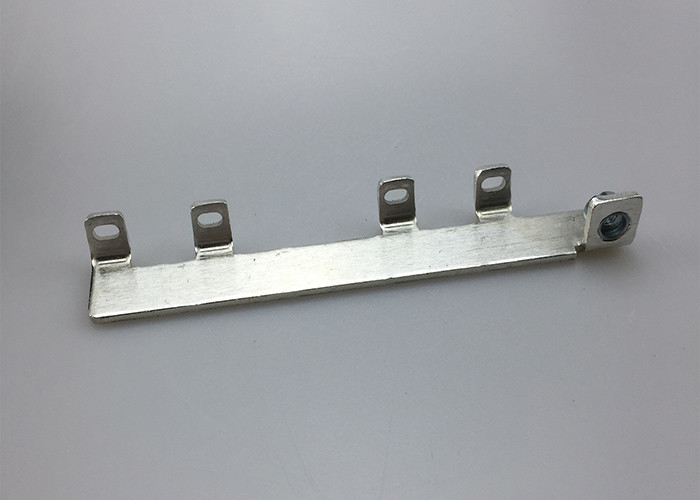

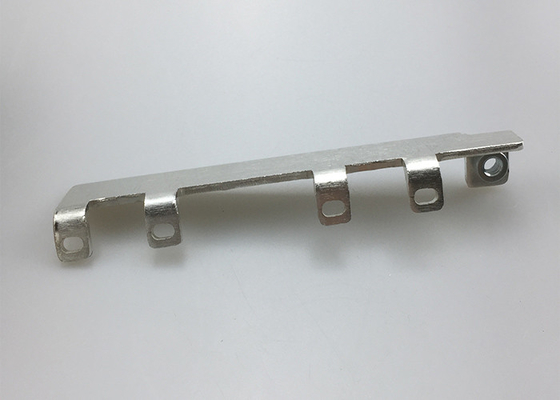

Corrosion Resistant Nickel Plated Copper Bus Bar For Electronic Products

Large Image : Corrosion Resistant Nickel Plated Copper Bus Bar For Electronic Products

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	BG
Certification:	ISO9001, SGS
Model Number:	Nickel Plated Copper Bus Bar

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Standard export carton package
Delivery Time:	Negotiation
Payment Terms:	L/C, T/T
Supply Ability:	1000000 pcs

Contact Now

Detailed Product Description

Material:	T2 Red Copper	Size:	Customize
Thickness:	3.0mm	Width:	77mm
Length:	168mm	Feature:	Corrosion Resistant
Finish:	Plate With Nickel	Usage:	Electronic Products
High Light:	copper battery bus bar , electrical grade copper bar

Corrosion Resistant Nickel Plated Copper Bus Bar For Electronic Products

Nickel Plated Copper Bus Bar Application

Nickel Plated Copper Bus Bar are widely usde in airconditioners,refrigerators,eclectrics due to its highly corrosion-resistant.It can be also used in structral parts

Nickel Plated Copper Bus Bar feature

High bonding strength.
Pure T2 copper.
Copper foil busbar to be used in transformer has a profile to allow for transformer thermal expansion and contraction
Made of copper foil provides maximum flexibility and reduces vibration . It is typically used for copper busbar systems, transformer connections and High Voltage Switchgear.

Nickel Plated Copper Bus Bar Advantage

1. Support to dissipate heat
2.. Make the connection of the high currency equipment more safe,more reliable,more convenient
3. The copper bus bars adsorb the noise when the high currency equipment works

Nickel Plated Copper Bus Bar Details

Product Name: Nickel Plated Copper Bus Bar

Thickness: 3.0mm

Width: 77mm

Length: 168mm

Feature: Corrosion Resistant

Finish: Plate with nickel

Usage: Electronic Products

Nickel Plated Copper Bus Bar Technical Parameters:

Thickness×Width (mm)	1.5 -20× (15-500)
Resistivity (Ωmm²/m)	0.018
Tensile Strength (MPa)	≥250
Elongation ( %)	45-50%
melting Point	1083℃

Conventional Types and Sizes:

Types	Total Thickness	Thickness of copper	Width	Length	Weight(kg/m)
BG-1.0550650	1.0	0.3mm+0.3mm	550	650	3.18
BG-1.5550650	1.5	0.3mm+0.3mm	550	650	4.77
BG-2.0220460	2.0	0.3mm+0.3mm	220	460	1.80
BG-3 ×30	3	0.3mm+0.3mm	30mm	≤6000mm	4.806
BG-4 ×40	4	0.3mm+0.3mm	40mm	≤6000mm	8.544
BG-5 ×50	5	0.3mm+0.3mm	50mm	≤6000mm	13.35
BG-6 ×60	6	0.3mm+0.3mm	60mm	≤6000mm	19.224
BG-8*80	8	0.3mm+0.3mm	80mm	≤6000mm	34.176
BG-10*100	10	0.3mm+0.3mm	100mm	≤6000mm	53.4
BG-12*120	12	0.3mm+0.3mm	120mm	≤6000mm	76.896
Others			As request

Why choose our company:

► We are manufacturers of bus bars since year of 2001 with automatic machines, professional production and inspection teams.
► Our staff s are all with more than 5 years working experience. We will supply you considerate pre-sale and after sale service
► Fast delivery for samples and bulk quantity,we have raw material in stock

► OEM/DEM is welcome.
► We are factory with competitive price and punctual delivery time.
► Inspect every product before delivery to ensure high quality.Our products have gained ISO9001 and IATFcertificate.
► Guarantee is 15-20years for flexible copper bus bar.
