Insoluted Nickel Plated Copper Bus Bar For Battery Power Transformer

Large Image : Insoluted Nickel Plated Copper Bus Bar For Battery Power Transformer

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	BG
Certification:	ISO9001, SGS
Model Number:	Nickel Plated Copper Bus Bar

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Standard export carton package
Delivery Time:	Negotiation
Payment Terms:	L/C, T/T
Supply Ability:	1000000 pcs

Contact Now

Detailed Product Description

Name:	Nickel Plated Copper Bus Bar	Size:	Customize
Thickness:	4.0mm	Width:	10mm
Length:	55mm	Feature:	Insoluted
Finish:	Plate With Nickel	Usage:	Battery Power Transformer
High Light:	copper battery bus bar , electrical grade copper bar

Insoluted Nickel Plated Copper Bus Bar For Battery Power Transformer

The feature of Nickel Plated Copper Bus Bar

► Excellent electrical conductivity.
► Pure T2 copper.
► Copper foil busbar to be used in transformer has a profile to allow for transformer thermal expansion and contraction
► Made of copper foil provides maximum flexibility and reduces vibration . It is typically used for copper busbar systems, transformer connections and High Voltage Switchgear.

Nickel Plated Copper Bus Bar Details

Material: T2 Red copper

Size: Custom Made

Product Name: Oxygen-free copper

Thickness: 4.0mm

Width: 10mm

Length: 55mm

Feature: Insoluted

Finish: Plate with nickel

Usage: Battery Power Transformer

Nickel Plated Copper Bus Bar Conventional Types and Sizes:

Types	Total Thickness	Thickness of copper	Width	Length	Weight(kg/m)
BG-4.02701056	4.0	0.3mm+0.3mm	270	1056	10.15
BG-5.0106412	5.0	0.3mm+0.3mm	106	412	1.94
BG-6.0268333	6.0	0.3mm+0.3mm	268	333	4.77
BG-3 ×30	3	0.3mm+0.3mm	30mm	≤6000mm	4.806
BG-4 ×40	4	0.3mm+0.3mm	40mm	≤6000mm	8.544
BG-5 ×50	5	0.3mm+0.3mm	50mm	≤6000mm	13.35
BG-6 ×60	6	0.3mm+0.3mm	60mm	≤6000mm	19.224
BG-8*80	8	0.3mm+0.3mm	80mm	≤6000mm	34.176
BG-10*100	10	0.3mm+0.3mm	100mm	≤6000mm	53.4
BG-12*120	12	0.3mm+0.3mm	120mm	≤6000mm	76.896
Others			As request

We have a team which is more than 100 people. It is an hi-tech enterprise with research & development, production and sale, we have professional R&D, production teams with experienced management, we keep on technology innovation to fullfil customers' specific requirement.With our high quailt product and considerate pre-sale&after sale sevrice,we have gained positive feedback from our valuable customers from domestic and oversea.

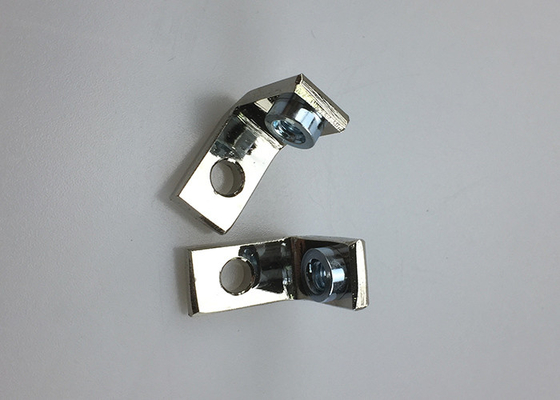

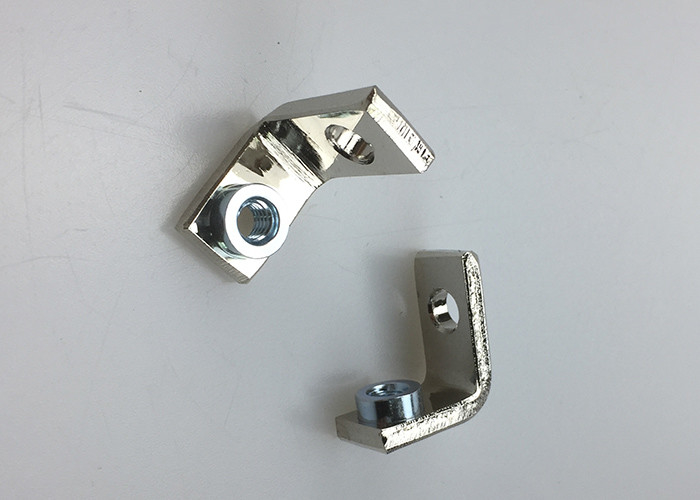

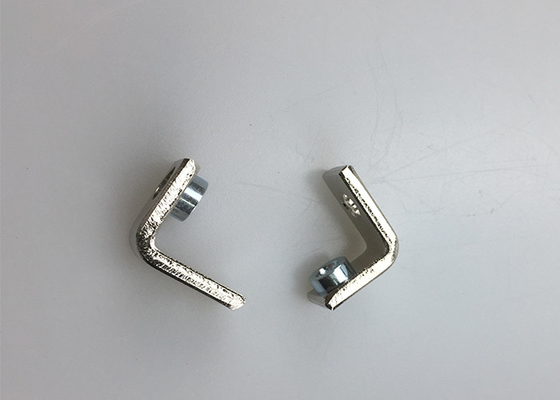

Nickel Plated Copper Bus Bar Show

Insoluted Nickel Plated Copper Bus Bar For Battery Power Transformer 0
