Product Details:
Payment & Shipping Terms:
|
| Name: | Nickel Plated Copper Bus Bar | Color: | Silver |
|---|---|---|---|
| Thickness: | 4.0mm | Width: | 40mm |
| Length: | 325mm | Feature: | Durable |
| Finish: | Plate With Nickel | Usage: | Electric Power Industry For Connecting Conductors. |
| High Light: | copper battery bus bar,electrical grade copper bar |
||

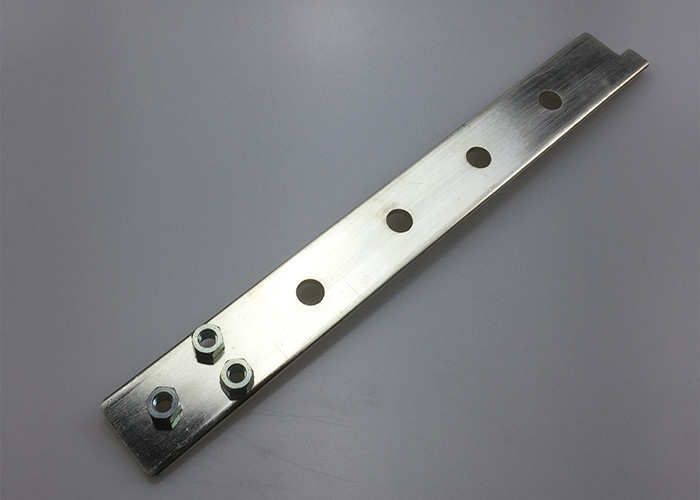

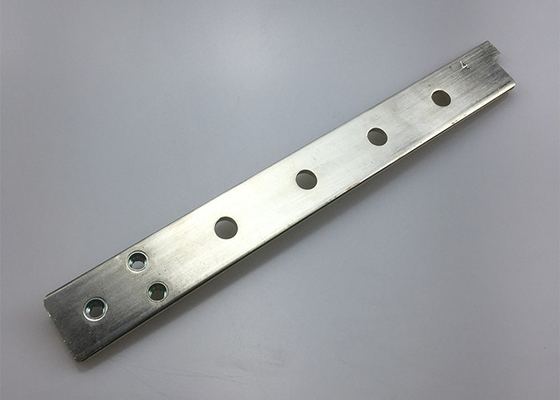

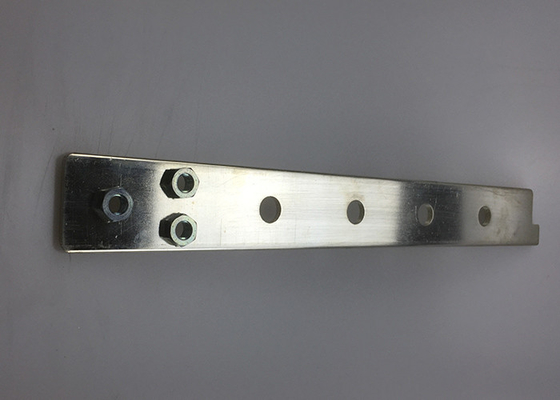

Silver Copper Battery Bus Bar , Custom Made Copper Grounding Bus Bar
Copper Battery Bus Bar features
1. Excellent electrical conductivity.
2. High bonding strength.
3. Pure T2 copper.
4.Copper foil busbar to be used in transformer has a profile to allow for transformer thermal expansion and contraction
5. Made of copper foil provides maximum flexibility and reduces vibration . It is typically used for copper busbar systems, transformer connections and High Voltage Switchgear.
Copper Battery Bus Bar Details
| Material: T2 Red copper |
| Size: Customize |
| Item: |
| Product Name: Oxygen-free copper |
| Thickness: 4.0mm |
| Width: 40mm |
| Length: 325mm |
| Feature: Excellent electrical conductivity |
| Finish: Plate with nickel |
| Usage: Electric power industry for connecting conductors. |
Copper Battery Bus Bar Technical Parameters:
| Thickness×Width (mm) | 1.5 -20× (15-500) |
| Copper content | 99.98% |
| Density (g/cm³) | 8.9 |
| Resistivity (Ωmm²/m) | 0.018 |
| Tensile Strength (MPa) | ≥250 |
| Elongation ( %) | 45-50% |
| melting Point | 1083℃ |
Copper Battery Bus Bar Conventional Types and Sizes:
| Types | Total Thickness | Thickness of copper | Width | Length | Weight(kg/m) |
| BG-1.0*550*650 | 1.0 | 0.3mm+0.3mm | 550 | 650 | 3.18 |
| BG-1.5*550*650 | 1.5 | 0.3mm+0.3mm | 550 | 650 | 4.77 |
| BG-2.0*220*460 | 2.0 | 0.3mm+0.3mm | 220 | 460 | 1.80 |
| BG-3.0*350*750 | 3.0 | 0.3mm+0.3mm | 350 | 750 | 7.01 |
| BG-4.0*270*1056 | 4.0 | 0.3mm+0.3mm | 270 | 1056 | 10.15 |
| BG-5 ×50 | 5 | 0.3mm+0.3mm | 50mm | ≤6000mm | 13.35 |
| BG-6 ×60 | 6 | 0.3mm+0.3mm | 60mm | ≤6000mm | 19.224 |
| BG-8*80 | 8 | 0.3mm+0.3mm | 80mm | ≤6000mm | 34.176 |
| BG-10*100 | 10 | 0.3mm+0.3mm | 100mm | ≤6000mm | 53.4 |
| BG-12*120 | 12 | 0.3mm+0.3mm | 120mm | ≤6000mm | 76.896 |
| Others | As request |
Trade Information
| Payment Method | T/T or L/C |
| Trade Terms | EXW / FOB / CIF |
| Payment Terms | 30% deposit after signing contract, and the balance should be paid before shipment or after sending B/L copy |
| Delivery way | By sea, land and air |
| Delivery Time | According to the quantity |
Copper Battery Bus Bar Production Show
