Product Details:
Payment & Shipping Terms:
|
| Name: | Tin Plated Copper Bus Bar | Material: | T2 Red Copper |
|---|---|---|---|
| Thickness:: | 1.0mm | Width:: | 15mm |
| Length:: | 505mm | Feature: | Superior Workability |
| Finish: | Tin Plated | Usage: | Bending , Drilling , Stamping |
| High Light: | tinned copper bus bar,tinned copper earth bar |
||
Superior Workability Tin Plated Copper Bus Bar For Bending , Drilling , Stamping
Tin Plated Copper Bus Bar Introduction
Tin Plated Copper Bus Bar , a high-current conductive product, are applicable for high-and low-voltage electrical apparatus, switch contacts, power distribution devices and bus ducts, etc, as the copper bus bars have the advantages of low resistance and large bending property.
Tin Plated Copper Bus Bar Advantages:
Excellent electrical conductivity.
High bonding strength.
Available for bending, drilling, stamping etc.
Pure T2 copper
| Product Name: Superior Workability Tin Plated Copper Bus Bar For Bending , Drilling , Stamping |
| Thickness: 1.0mm |
| Width: 15mm |
| Length: 505mm |
| Feature: Superior Workability |
| Finish: Tin Plated |
| Usage: Bending , Drilling , Stamping |
Tin Plated Copper Bus Bar Technical Parameters:
| Thickness×Width (mm) | 1.5 -20× (15-500) |
| Copper content | 99.98% |
| Density (g/cm³) | 8.9 |
| Resistivity (Ωmm²/m) | 0.018 |
| Tensile Strength (MPa) | ≥250 |
Tin Plated Copper Bus Bar Conventional Types and Sizes:
| Types | Total Thickness | Thickness of copper | Width | Length | Weight(kg/m) |
| BG-1.0*550*650 | 1.0 | 0.3mm+0.3mm | 550 | 650 | 3.18 |
| BG-1.5*550*650 | 1.5 | 0.3mm+0.3mm | 550 | 650 | 4.77 |
| BG-2.0*220*460 | 2.0 | 0.3mm+0.3mm | 220 | 460 | 1.80 |
| BG-3.0*350*750 | 3.0 | 0.3mm+0.3mm | 350 | 750 | 7.01 |
| BG-5 ×50 | 5 | 0.3mm+0.3mm | 50mm | ≤6000mm | 13.35 |
| BG-6 ×60 | 6 | 0.3mm+0.3mm | 60mm | ≤6000mm | 19.224 |
| BG-8*80 | 8 | 0.3mm+0.3mm | 80mm | ≤6000mm | 34.176 |
| BG-10*100 | 10 | 0.3mm+0.3mm | 100mm | ≤6000mm | 53.4 |
| BG-12*120 | 12 | 0.3mm+0.3mm | 120mm | ≤6000mm | 76.896 |
| Others | As request |
FAQ
Q1.Are you factory?
A.Yes,we are factory for copper and aluminum bus bars since year of 2012.You are welcome to visit our factory at your convenient time.
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.

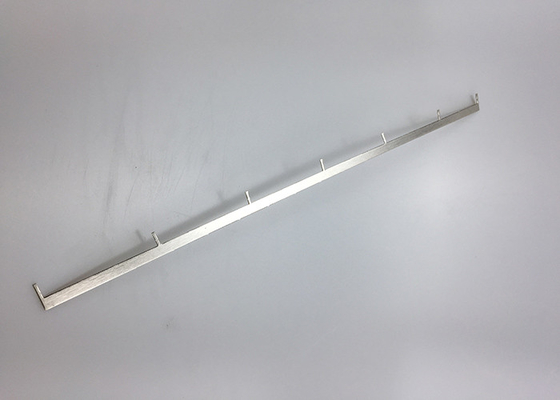

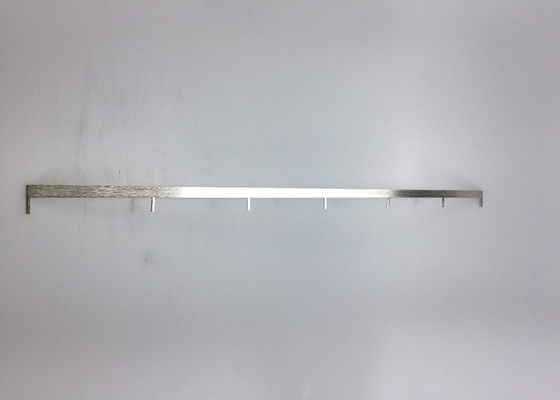

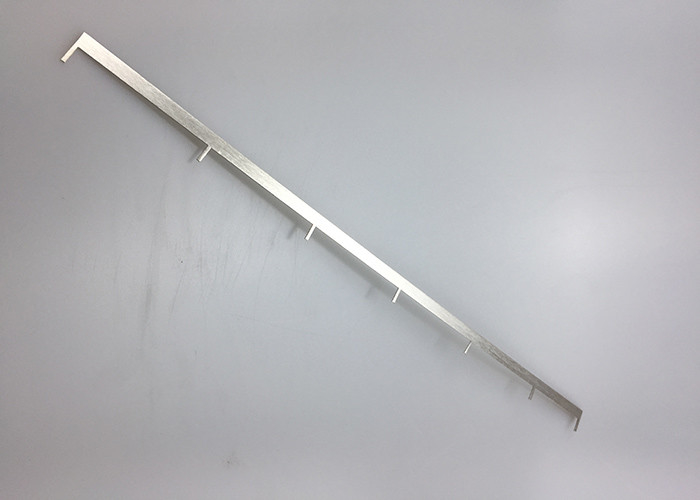

Tin Plated Copper Bus Bar Pictures
