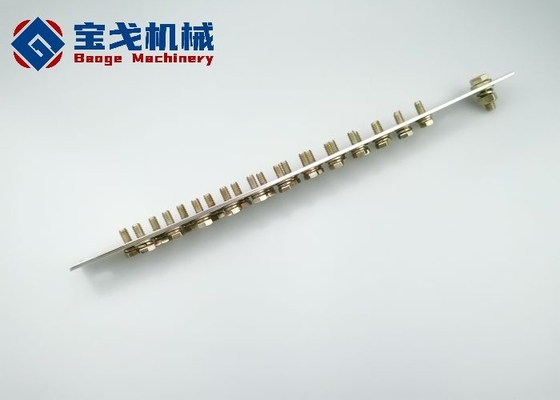

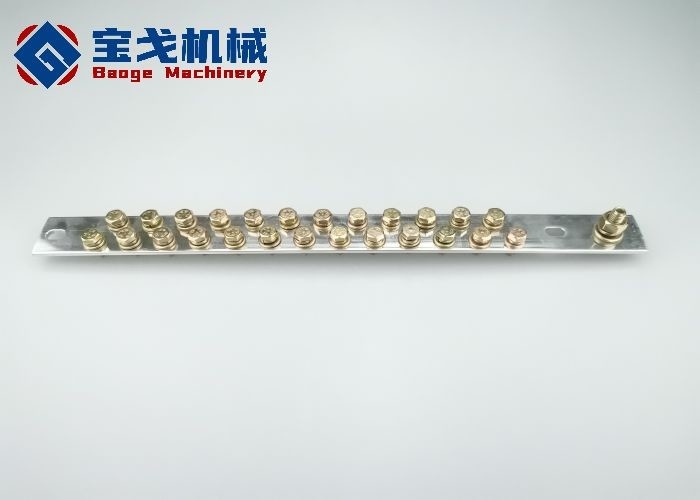

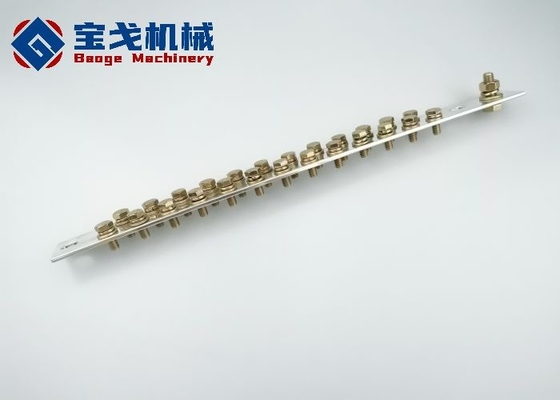

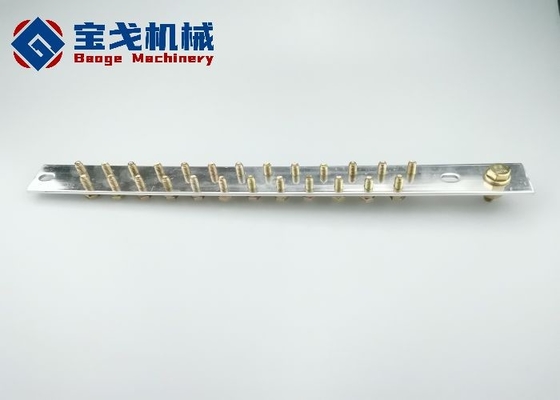

B42 Switchgear Tin Plated Copper Bus Bar Pre Assembled Grounding With Screws

B42 switchgear tin plated copper bus bars pre-assembled grounding copper busbar with screws

Details:

Tinned Plating Copper Bus Bars from Baoge Machinery Manufacturer:

We manufacture and export Tinned coated Copper Bus Bars. In electrical power distribution, a bus bar is a strip of copper or aluminium that conducts electricity within a switchboard, distribution board, substation or other electrical apparatus
The size of the bus bar determines the maximum amount of current that can be safely carried. Bus bars can have a cross-sectional area of as little as 10 mm2 but electrical substations may use metal tubes of 50 mm in diameter (1,963 mm2) or more as bus bars
For rigid electrical connections, Tinned coated Copper Bus Bars offer a very efficient solution. Resistivity in copper bars i s very low, 25 in^2 bar 1 foot long is only 0.0000329 Ohms – roughly 8 Watts lost at 500 Amps.

Where to use Tinned coated Copper Bus Bars:
Very rigid high power connections.
Connection of Field/Armature on Motor Terminals

Where not to use Tinned coated Copper Bus Bars:
Anywhere that needs flexible connections.
Between battery terminals. (May cause undue stress to terminals.)

Shape / Size:

Baoge Copper produces and supplies high quality tin-plated copper busbar as per International Standards such as JIS, DIN, BS and ASTM.

Consistent Tin-Coating

PROCESSING TECHNOLOGY:

We support OEM service with high-precision CNC machining, cutting, wire cutting, turning, lathing, hobbing, milling, bending, twisting, punching, drilling, tapping, carving, twisting, riveting, electroplating, chemical plating and more; which are the bases of manufacturing copper parts in any customized shapes.

OUR PRODUCTION FACILITIES:

The wide range of products made of copper and other materials are processed by our powerful facilities:
Electric melting furnaces, large power extruders, rolling mills, drawing machines, lathes, CNC machining centers, dieing out pressers and punchers

QUALITY CONTROL:

In order to assure our customer the best quality of product, we are serious with quality control in every procedure. Here are some of equipment for different measurement purposes:

For chemical element and physical performance: spectrometer, tension strength tester and hardness meter.
For dimension and shape: coordinate measuring machine (CMM), optical profilometry, customized go/stop gauge and other basic tools such as vernier caliper, micrometer caliper and height gauge.

ORDER STEPS:

1. Contact us first. We would appreciate it if you could send us your drawing, detailed requirements or description of design.
2. Our engineers check your product design and emulate production, then send back production advice if there are something could be advanced.
3. Quotation and communication on other details.
4. Production and inspection.
5. Packing and shipment.
