1804946mm Tin Plated Copper Bus Bar With PC/ABS Flame Retardant Protective Shell

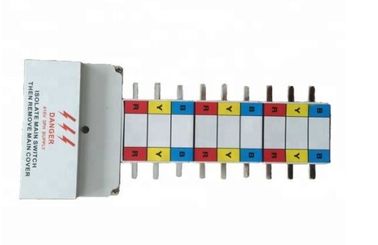

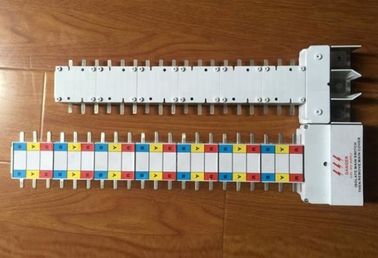

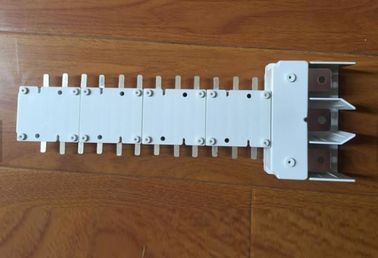

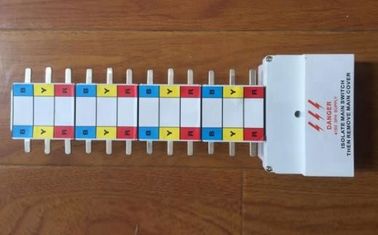

Large Image : 180*49*46mm Tin Plated Copper Bus Bar With PC/ABS Flame Retardant Protective Shell

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	BG
Certification:	ISO9001, SGS
Model Number:	B11

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Standard export carton package
Delivery Time:	Negotiation
Payment Terms:	L/C, T/T
Supply Ability:	150 Tons

Contact Now

Detailed Product Description

Product Name::	MCB Copper Busbar	Color::	Natural(white)
Thickness::	2.0/2.5/3.0/3.5mm	Size::	Customize
Protective Shell::	PC/ABS Flame Retardant Material	Scope::	Commercial And Light Industrial Equipment Installation
High Light:	tinned copper flat bar , tinned copper earth bar

180*49*46mm Tin Plated Copper Bus Bar With PC/ABS Flame Retardant Protective Shell

Detail Description

Material: Copper

Size: 180*49*46mm

Item: B11

Product Name: MCB Copper Busbar

Color: Natural(white)

Current: 100A-800A

Thickness: 2.0/2.5/3.0/3.5mm

Switch Pole: 3ph,6,12,18,24,36,42 ways

Protective shell: PC/ABS flame retardant material

Scope: commercial and light industrial equipment installation

1. More Details:

Description:

In electrical systems subject to the installation requirements stipulated in DIN VDE 0100 or IEC 60204-1 / EN 60204-1/ VDE 0113-1 & IEC 60439, neutral, protective earth or phase conductors are often connected to central bus bars. This requires clear labeling of the conductor or the terminal block to the corresponding circuit.

The connection terminal blocks fulfill these conditions in two ways:

- By marking each terminal block individually

- By their blue, green-yellow or black colored housings.

More Dimension:

Model	Connect Size(mm) Thickness x Width	Outline Size(mm) Thickness x Width	Busbar Size(mm) Length x Width x Height	Inter Diameter(mm)
B11-100A/2P	2x5	2x20	180x49x46	18
B11-100A/3P	2x5	2x20	234x49x46	36
B11-100A/4P	2x5	2x20	288x49x46	54
B11-100A/5P	2x5	2x20	342x49x46	72
B11-100A/6P	2x5	2x20	396x49x46	90
B11-100A/7P	2x5	2x20	450x49x46	108
B11-150A/2P	2.5x5	2.5x20	180x49x46	18
B11-150A3P	2.5x5	2.5x20	234x49x46	36
B11-150A/4P	2.5x5	2.5x20	288x49x46	54
B11-150A/5P	2.5x5	2.5x20	342x49x46	72
B11-150A/6P	2.5x5	2.5x20	396x49x46	90
B11-150A/7P	2.5x5	2.5x20	450x49x46	108
B11-225A/2P	3x5	3x20	180x49x46	18
B11-225A/3P	3x5	3x20	234x49x46	36
B11-225A/4P	3x5	3x20	288x49x46	54
B11-225A/5P	3x5	3x20	342x49x46	72
B11-225A/6P	3x5	3x20	396x49x46	90
B11-225A/7P	3x5	3x20	450x49x46	108

Main Features:

What's the BUSBAR PAN ASSEBLY?

Modular power distribution which consists of a variety of forms, can be formalized by the standard design of the distribution board.

Electric Safety

The inner case made of flame-retardant materials insulation Bus-Bar location, so there is no risk of electrical accidents.

Superior Workability

Bus-Bar signing this tedious task distributor, you can work easily without need to modular MCPD.

Easy to install

By using complex and costly and time-MCPD is a quick and easy installation it does not require more than two busbars consuming production process possible.

Diverse applicability

Even in the same product configuration changes easily in accordance with the appropriate circuit construction site conditions, it can be configured.

First installation

MCPD in place using a distribution panel installation is needed urgently, you can install an emergency

2. Trade Information

Payment Method	T/T or L/C
Trade Terms	EXW / FOB / CIF
Payment Terms	30% deposit after signing contract, and the balance should be paid before shipment or after sending B/L copy
Delivery way	By sea, land and air
Delivery Time	According to the quantity

3. Why choose our company:

► We are manufacturers of bus bars since year of 2001 with automatic machines, professional production and inspection teams.
► Our staff s are all with more than 5 years working experience. We will supply you considerate pre-sale and after sale service
► Fast delivery for samples and bulk quantity,we have raw material in stock

► OEM/DEM is welcome.
► We are factory with competitive price and punctual delivery time.
► Inspect every product before delivery to ensure high quality.Our products have gained ISO9001 and IATFcertificate.
► Guarantee is 15-20years for flexible copper bus bar.

4. The feature of our copper busbar:

► Excellent electrical conductivity.

► High bonding strength.

► Available for bending, drilling, stamping etc.

► Pure T2 copper

Our Service:

1. Providing Professional Advises & Operation

2. Customer Service Online with 24 Hours

3. Full Inspection On All The Products Before Shipement

4. Free Logo Embossing

5. Shipping &Price Term: EXW;FOB;CIF

6. OEM & ODM Are all Available

Advantage

1. Professional Operation Experience
2. The Sizes All Can Be Customised
3. Sample For Your Reference Available

4. Low MOQ, Low Price

5. Safe Packing & Prompt Delivery

6. Quality Guaranted: ISO9001:2008, UL, All Kinds of Test
