Product Details:
Payment & Shipping Terms:
|
| Product Name:: | Earthing Tinned Coated BusBar | Type:: | Plug-in |
|---|---|---|---|
| Length:: | 0.3m,3m, 5m, 6m/OEM | Service Time:: | More Than 50 Years |
| Surface Finished:: | Tinned Plated | Material：: | Copper Or Copper Clad |
| High Light: | tinned copper bus bar,tinned copper flat bar |
||
Detail Description
Material:Copper or copper clad
Size: Customize
Item: B12
Product Name: Earthing Tinned Coated Bus Bar
Type: Plug-in
Width: 20mm to 600mm
Length: 0.3m,3m, 5m, 6m/OEM
Thickness: 0.5-12mm or say 0.02-0.08 inch
Service Time: more than 50 years
Surface Finished: Tinned plated
1. More Details:
Specification:
| Item | High Quality Earthing Tinned Coated BusBar |
| Material | Pure Copper/Brass/Galvanized Seel |
| Length | 100mm-1000mm/As Per Your Demand |
| Width | 20mm-600mm |
| Thickness | 1mm-10mm |
| Surface | Tinned or Chromeplate or Hot Dip Galvanized |
| Holes | Size & Quantity Customised |

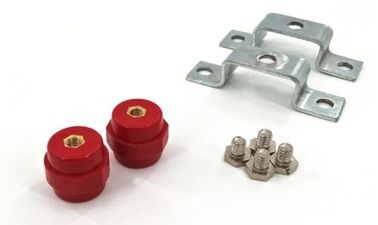

| Accessories | Galvanized Steel Holder; Insulator; Screw Nuts & Bolts |
| Service Life | More Than 50 Years |
| Characters | High Conductivity; Strong Anticorrosion |
| Common Dimensions | 300*40*5mm;400*50*5mm;500*50*6mm;600*50*5mm |
Description:

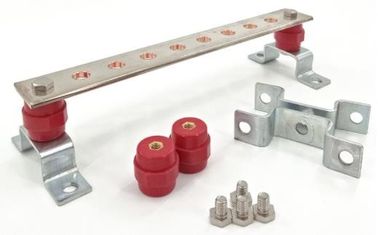

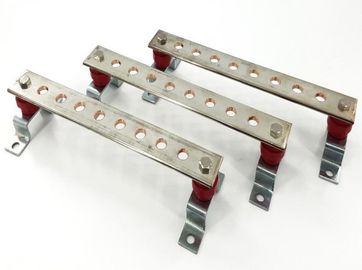

High Quality Earthing Tinned Coated Bus Bar using T2 pure copper as the main material for multi-wire connection provides a centralized location. It can be installed in the tower, indoor and outdoor base stations, and any other requirements for grounding place. It is strictly in accordance with the relevant IEC standard production of products for all types of terminal lugs, after surface treatment, good conductivity, no contact surface oxidation, to ensure a reliable electrical conductivity. The product is reasonable overall design, using standard insulators supporting and equipped with steel support, and finally fix in the desired position with expansion screws.
More Dimension:
| Model | Connect Size(mm) Thickness x Width |
Outline Size(mm) Thickness x Width |
Busbar Size(mm) Length x Width x Height |
Inter Diameter(mm) |
| B11-100A/2P | 2x5 | 2x20 | 180x49x46 | 18 |
| B11-100A/3P | 2x5 | 2x20 | 234x49x46 | 36 |
| B11-100A/4P | 2x5 | 2x20 | 288x49x46 | 54 |
| B11-100A/5P | 2x5 | 2x20 | 342x49x46 | 72 |
| B11-100A/6P | 2x5 | 2x20 | 396x49x46 | 90 |
| B11-100A/7P | 2x5 | 2x20 | 450x49x46 | 108 |
| B11-150A/2P | 2.5x5 | 2.5x20 | 180x49x46 | 18 |
| B11-150A3P | 2.5x5 | 2.5x20 | 234x49x46 | 36 |
| B11-150A/4P | 2.5x5 | 2.5x20 | 288x49x46 | 54 |
| B11-150A/5P | 2.5x5 | 2.5x20 | 342x49x46 | 72 |
| B11-150A/6P | 2.5x5 | 2.5x20 | 396x49x46 | 90 |
| B11-150A/7P | 2.5x5 | 2.5x20 | 450x49x46 | 108 |
| B11-225A/2P | 3x5 | 3x20 | 180x49x46 | 18 |
| B11-225A/3P | 3x5 | 3x20 | 234x49x46 | 36 |
| B11-225A/4P | 3x5 | 3x20 | 288x49x46 | 54 |
| B11-225A/5P | 3x5 | 3x20 | 342x49x46 | 72 |
| B11-225A/6P | 3x5 | 3x20 | 396x49x46 | 90 |
| B11-225A/7P | 3x5 | 3x20 | 450x49x46 | 108 |
Main Features:
What's the BUSBAR PAN ASSEBLY?
Modular power distribution which consists of a variety of forms, can be formalized by the standard design of the distribution board.
Electric Safety
The inner case made of flame-retardant materials insulation Bus-Bar location, so there is no risk of electrical accidents.
Superior Workability
Bus-Bar signing this tedious task distributor, you can work easily without need to modular MCPD.
Easy to install
By using complex and costly and time-MCPD is a quick and easy installation it does not require more than two busbars consuming production process possible.
Diverse applicability
Even in the same product configuration changes easily in accordance with the appropriate circuit construction site conditions, it can be configured.
First installation
MCPD in place using a distribution panel installation is needed urgently, you can install an emergency
2. Trade Information
| Payment Method | T/T or L/C |
| Trade Terms | EXW / FOB / CIF |
| Payment Terms | 30% deposit after signing contract, and the balance should be paid before shipment or after sending B/L copy |
| Delivery way | By sea, land and air |
| Delivery Time | According to the quantity |
3. Why choose our company:
► We are manufacturers of bus bars since year of 2001 with automatic machines, professional production and inspection teams.
► Our staff s are all with more than 5 years working experience. We will supply you considerate pre-sale and after sale service
► Fast delivery for samples and bulk quantity,we have raw material in stock
► OEM/DEM is welcome.
► We are factory with competitive price and punctual delivery time.
► Inspect every product before delivery to ensure high quality.Our products have gained ISO9001 and IATFcertificate.
► Guarantee is 15-20years for flexible copper bus bar.
4. The feature of our copper busbar:
► Excellent electrical conductivity.
► High bonding strength.
► Available for bending, drilling, stamping etc.
► Pure T2 copper
1. Providing Professional Advises & Operation
2. Customer Service Online with 24 Hours
3. Full Inspection On All The Products Before Shipement
4. Free Logo Embossing
5. Shipping &Price Term: EXW;FOB;CIF
6. OEM & ODM Are all Available
Advantage
1. Professional Operation Experience
2. The Sizes All Can Be Customised
3. Sample For Your Reference Available
4. Low MOQ, Low Price
5. Safe Packing & Prompt Delivery
6. Quality Guaranted: ISO9001:2008, UL, All Kinds of Test
FAQ
Q1.Are you factory?
A.Yes,we are factory for copper and aluminum bus bars since year of 2012.You are welcome to visit our factory at your convenient time.
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q5: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
