Product Details:
Payment & Shipping Terms:
|
| Name: | Tin Plated Copper Bus Bar | Material: | T2 Red Copper |
|---|---|---|---|
| Thickness:: | 3.0mm | Width:: | 30mm |
| Length:: | 125mm | Feature: | High Bonding Strength |
| Finish: | Tin Plated | Usage: | Precision Equipment |
| High Light: | tinned copper bus bar,tinned copper earth bar |
||
High Bonding Strength Tin Plated Copper Bus Bar For Precision Equipment
Tin Plated Copper Bus Bar Introduction
Bus bar is an eqiupotential system established by several metal parts for earthing conducitivity and connection system. The voltage for equipotential system is almost zero which will play a roll in protection of people and equipment when currents or problems occur. Earthing copper bar is the most popular connection products for the current days.
Tin Plated Copper Bus Bar Surface:
mill,polished,bright,hair line,brush,sand blast,etc
Tin Plated Copper Bus Bar Advantage
1. No visible welds, smooth surface;
2. We accept custom design and provide free samples, which are usually manufactured by wire-cut electrical discharge machining (EDM);
3. Our sophisticated stamping toolings will ensure the precision and stability of shunt's resistance.
4. Meet the requirements of standard IEC 62053-21/22/23, GB6145-99 F2;
5. Used for Electrical measuring instruments, electrical protective devices, current sensing modules, automatic control system, and so on.
| Material: T2 Red copper |
| Size: Customize |
| Item: High Bonding Strength Tin Plated Copper Bus Bar For Precision Equipment |
| Product Name: Tin Plated Copper Bus Bar |
| Thickness: 3.0mm |
| Width: 30mm |
| Length: 125mm |
| Feature: High Bonding Strength |
| Finish: Tin Plated |
| Usage: Precision Equipment |
Technical Parameters:
| Thickness×Width (mm) | 1.5 -20× (15-500) |
| Copper content | 99.98% |
| Density (g/cm³) | 8.9 |
| Resistivity (Ωmm²/m) | 0.018 |
| Tensile Strength (MPa) | ≥250 |
Conventional Types and Sizes:
| Types | Total Thickness | Thickness of copper | Width | Length | Weight(kg/m) |
| BG-1.0*550*650 | 1.0 | 0.3mm+0.3mm | 550 | 650 | 3.18 |
| BG-1.5*550*650 | 1.5 | 0.3mm+0.3mm | 550 | 650 | 4.77 |
| BG-2.0*220*460 | 2.0 | 0.3mm+0.3mm | 220 | 460 | 1.80 |
| BG-3 ×30 | 3 | 0.3mm+0.3mm | 30mm | ≤6000mm | 4.806 |
| BG-4 ×40 | 4 | 0.3mm+0.3mm | 40mm | ≤6000mm | 8.544 |
| BG-5 ×50 | 5 | 0.3mm+0.3mm | 50mm | ≤6000mm | 13.35 |
| BG-6 ×60 | 6 | 0.3mm+0.3mm | 60mm | ≤6000mm | 19.224 |
| BG-8*80 | 8 | 0.3mm+0.3mm | 80mm | ≤6000mm | 34.176 |
| BG-10*100 | 10 | 0.3mm+0.3mm | 100mm | ≤6000mm | 53.4 |
| BG-12*120 | 12 | 0.3mm+0.3mm | 120mm | ≤6000mm | 76.896 |
| Others | As request |
1. Providing Professional Advises & Operation
2. Customer Service Online with 24 Hours
3. Full Inspection On All The Products Before Shipement
4. Free Logo Embossing
5. Shipping &Price Term: EXW;FOB;CIF
6. OEM & ODM Are all Available
FAQ
Q1.Are you factory?
A.Yes,we are factory for copper and aluminum bus bars since year of 2012.You are welcome to visit our factory at your convenient time.
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q5: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.

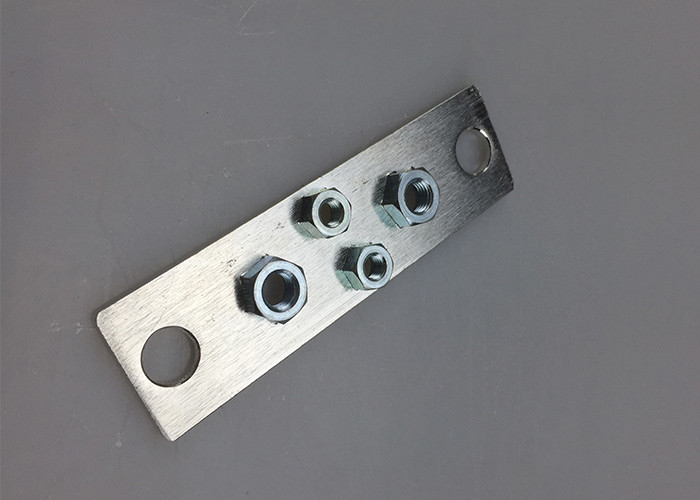

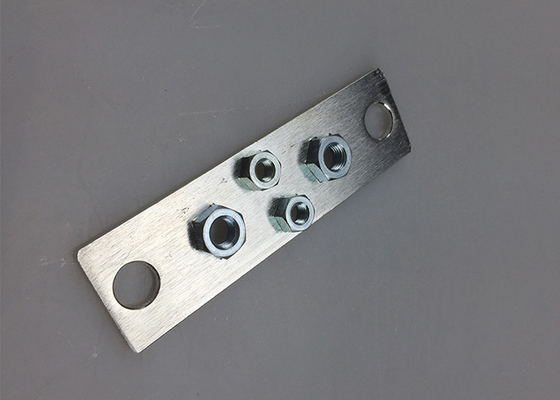

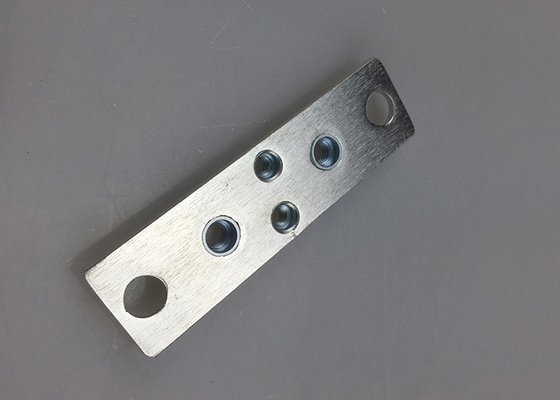

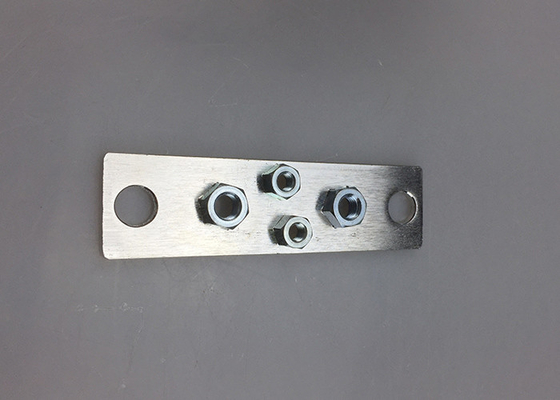

Tin Plated Copper Bus Bar Pictures
