Product Details:
Payment & Shipping Terms:
|
| Name: | Tin Plated Busbar | OEM: | OEM Service |
|---|---|---|---|
| Thickness:: | 2.0mm | Width:: | 65mm |
| Length:: | 35mm | Feature: | Multifunctional |
| Finish: | Tin Plated | Usage: | Electric Power Industry For Connecting Conductors. |
| High Light: | tinned copper bus bar,tinned copper earth bar |
||
OEM Service Tin Plated Busbar / Multifunctional Tinned Copper Flat Bar
Tin Plated Busbar Introduction
Tin Plated Busbar is an eqiupotential system established by several metal parts for earthing conducitivity and connection system. The voltage for equipotential system is almost zero which will play a roll in protection of people and equipment when currents or problems occur. Earthing copper bar is the most popular connection products for the current days.
Tin Plated Busbar Advantage
1. No visible welds, smooth surface;
2. We accept custom design and provide free samples, which are usually manufactured by wire-cut electrical discharge machining (EDM);
3. Our sophisticated stamping toolings will ensure the precision and stability of shunt's resistance.
4. Meet the requirements of standard IEC 62053-21/22/23, GB6145-99 F2;
| Material: T2 Red copper |
| Size: Customize |
| Item: OEM Service Tin Plated Busbar / Multifunctional Tinned Copper Flat Bar |
| Product Name: Tin Plated Busbar |
| Thickness: 2.0mm |
| Width: 65mm |
| Length: 35mm |
| Feature: Excellent electrical conductivity |
| Finish: Tin Plated |
| Usage: Electric power industry for connecting conductors. |
Technical Parameters:
| Thickness×Width (mm) | 1.5 -20× (15-500) |
| Density (g/cm³) | 8.9 |
| Resistivity (Ωmm²/m) | 0.018 |
| Tensile Strength (MPa) | ≥250 |
| Elongation ( %) | 45-50% |
| melting Point | 1083℃ |
Conventional Types and Sizes:
| Types | Total Thickness | Thickness of copper | Width | Length | Weight(kg/m) |
| BG-1.0*550*650 | 1.0 | 0.3mm+0.3mm | 550 | 650 | 3.18 |
| BG-1.5*550*650 | 1.5 | 0.3mm+0.3mm | 550 | 650 | 4.77 |
| BG-2.0*220*460 | 2.0 | 0.3mm+0.3mm | 220 | 460 | 1.80 |
| BG-3.0*350*750 | 3.0 | 0.3mm+0.3mm | 350 | 750 | 7.01 |
| BG-4.0*270*1056 | 4.0 | 0.3mm+0.3mm | 270 | 1056 | 10.15 |
| BG-5.0*106*412 | 5.0 | 0.3mm+0.3mm | 106 | 412 | 1.94 |
| BG-6.0*268*333 | 6.0 | 0.3mm+0.3mm | 268 | 333 | 4.77 |
| BG-3 ×30 | 3 | 0.3mm+0.3mm | 30mm | ≤6000mm | 4.806 |
| BG-4 ×40 | 4 | 0.3mm+0.3mm | 40mm | ≤6000mm | 8.544 |
| BG-5 ×50 | 5 | 0.3mm+0.3mm | 50mm | ≤6000mm | 13.35 |
| BG-6 ×60 | 6 | 0.3mm+0.3mm | 60mm | ≤6000mm | 19.224 |
| BG-8*80 | 8 | 0.3mm+0.3mm | 80mm | ≤6000mm | 34.176 |
| BG-10*100 | 10 | 0.3mm+0.3mm | 100mm | ≤6000mm | 53.4 |
| BG-12*120 | 12 | 0.3mm+0.3mm | 120mm | ≤6000mm | 76.896 |
| Others | As request |
Trade Information
| Payment Method | T/T or L/C |
| Trade Terms | EXW / FOB / CIF |
| Payment Terms | 30% deposit after signing contract, and the balance should be paid before shipment or after sending B/L copy |
| Delivery way | By sea, land and air |
| Delivery Time | According to the quantity |
Our products 'category includes flexible copper/aluminium bus bar used in new energy line, copper / aluminium foil busbar, fabricated copper busbar, braid wire, copper earth wire/terminal,Copper/Alu. Busbar, copper/aluminium conductor as accessories used in switch and other equipments.
Our products are widely used in battery pack in new energy automobile car factory, TOSHIBA company, energy saving communication power supply cabinet factory, electricity and electric power engigeering, high-low voltage power distribution equipment, welding equipment company, electronic and electric appliance plants.
Our process equipments for flexible bus bar are imported from Germany,and automatic process equipments are famous brand in domestic, such as automatic welding, strong power and special welding, automatic induction welding and its accessories, also with series specialty inspection equipments.

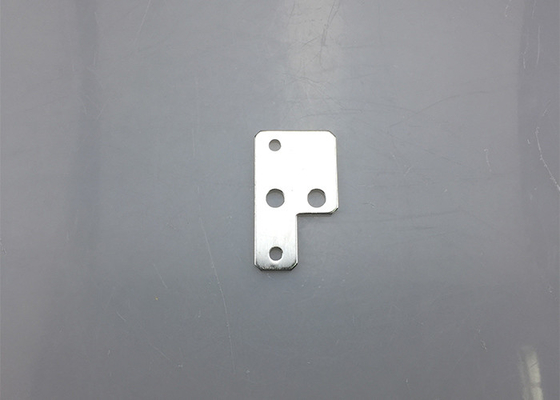

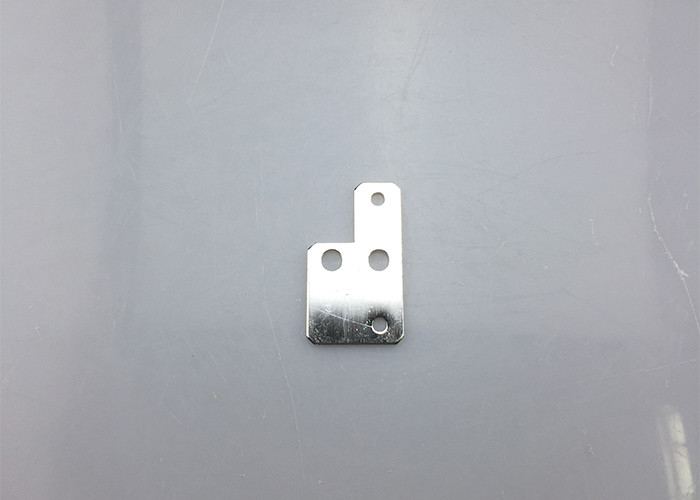

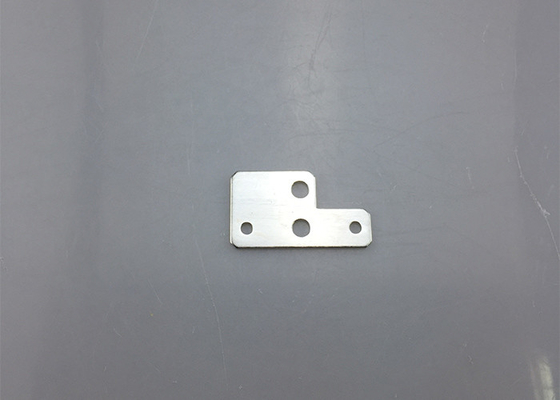

Tin Plated Copper Bus Bar Pictures
