Product Details:
Payment & Shipping Terms:
|
| Name: | Tin Plated Copper Bus Bar | Material: | T2 Red Copper |
|---|---|---|---|
| Thickness:: | 3.0mm | Width:: | 12mm |
| Length:: | 63mm | Feature: | Electric Safety |
| Finish: | Tin Plated | Material Feature: | Flame Retardant Materials |
| High Light: | tinned copper bus bar,tinned copper earth bar |
||
Electric Safety Tin Plated Copper Bus Bar With Flame Retardant Materials
Tin Plated Copper Bus Bar Main Features:
What's the BUSBAR PAN ASSEBLY?
Modular power distribution which consists of a variety of forms, can be formalized by the standard design of the distribution board.
Electric Safety
The inner case made of flame-retardant materials insulation Bus-Bar location, so there is no risk of electrical accidents.
Superior Workability
Bus-Bar signing this tedious task distributor, you can work easily without need to modular MCPD.
Easy to install
By using complex and costly and time-MCPD is a quick and easy installation it does not require more than two busbars consuming production process possible.
Diverse applicability
Even in the same product configuration changes easily in accordance with the appropriate circuit construction site conditions, it can be configured.
Tin Plated Copper Bus Bar Advantage
1. No visible welds, smooth surface;
2. We accept custom design and provide free samples, which are usually manufactured by wire-cut electrical discharge machining (EDM);
3. Our sophisticated stamping toolings will ensure the precision and stability of shunt's resistance.
4. Meet the requirements of standard IEC 62053-21/22/23, GB6145-99 F2;
5. Used for Electrical measuring instruments, electrical protective devices, current sensing modules, automatic control system, and so on.
| Material: T2 Red copper |
| Product Name: Electric Safety Tin Plated Copper Bus Bar With Flame Retardant Materials |
| Thickness: 3.0mm |
| Width: 12mm |
| Length: 63mm |
| Feature: Electric Safety |
| Finish: Tin Plated |
| Material : Flame Retardant Materials |
Tin Plated Copper Bus Bar Technical Parameters:
| Thickness×Width (mm) | 1.5 -20× (15-500) |
| Copper content | 99.98% |
| melting Point | 1083℃ |
Tin Plated Copper Bus Bar Conventional Types and Sizes:
| Types | Total Thickness | Thickness of copper | Width | Length | Weight(kg/m) |
| BG-1.0*550*650 | 1.0 | 0.3mm+0.3mm | 550 | 650 | 3.18 |
| BG-1.5*550*650 | 1.5 | 0.3mm+0.3mm | 550 | 650 | 4.77 |
| BG-2.0*220*460 | 2.0 | 0.3mm+0.3mm | 220 | 460 | 1.80 |
| BG-3.0*350*750 | 3.0 | 0.3mm+0.3mm | 350 | 750 | 7.01 |
| BG-4.0*270*1056 | 4.0 | 0.3mm+0.3mm | 270 | 1056 | 10.15 |
| BG-5 ×50 | 5 | 0.3mm+0.3mm | 50mm | ≤6000mm | 13.35 |
| BG-6 ×60 | 6 | 0.3mm+0.3mm | 60mm | ≤6000mm | 19.224 |
| BG-8*80 | 8 | 0.3mm+0.3mm | 80mm | ≤6000mm | 34.176 |
| BG-10*100 | 10 | 0.3mm+0.3mm | 100mm | ≤6000mm | 53.4 |
| BG-12*120 | 12 | 0.3mm+0.3mm | 120mm | ≤6000mm | 76.896 |
| Others | As request |
1. Providing Professional Advises & Operation
2. Customer Service Online with 24 Hours
3. Full Inspection On All The Products Before Shipement
4. Free Logo Embossing
5. Shipping &Price Term: EXW;FOB;CIF
6. OEM & ODM Are all Available

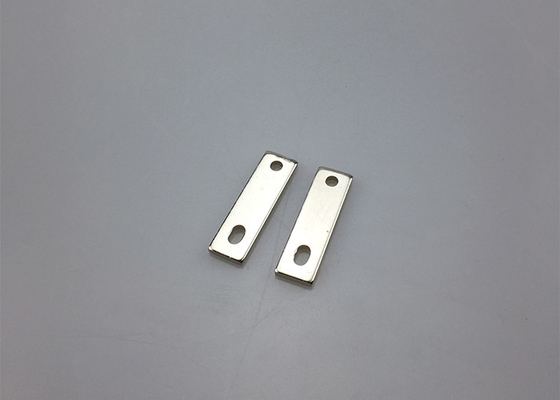

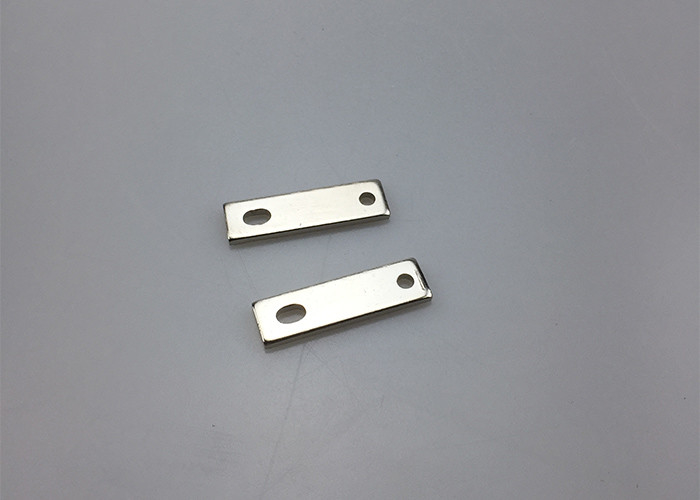

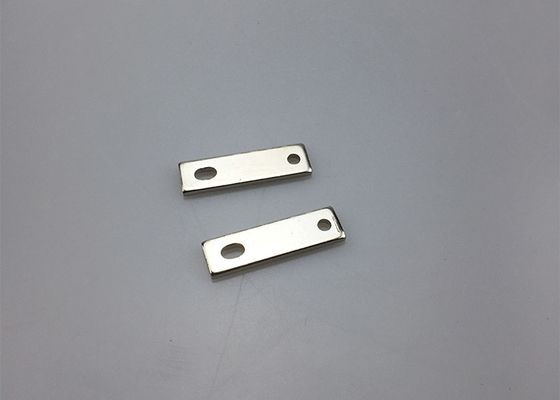

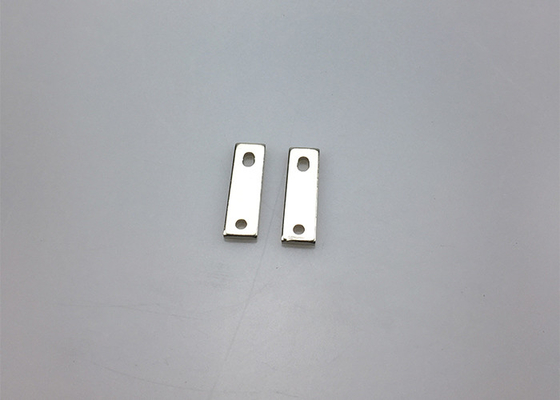

Tin Plated Copper Bus Bar Pictures
