Product Details:
Payment & Shipping Terms:
|
| Name: | Tin Plated Copper Bus Bar | Material: | T2 Red Copper |
|---|---|---|---|
| Thickness:: | 2.0mm | Width:: | 25mm |
| Length:: | 77mm | Feature: | Excellent Electrical Conductivity |
| Finish: | Tin Plated | Usage: | Electric Power Industry |
| High Light: | tinned copper bus bar,tinned copper earth bar |
||
T2 Red Pure Tin Plated Copper Bus Bar For Electric Power Industry
Tin Plated Copper Bus Bar Description:
Tin Plated Copper Bus Bar using T2 pure copper as the main material for multi-wire connection provides a centralized location. It can be installed in the tower, indoor and outdoor base stations, and any other requirements for grounding place. It is strictly in accordance with the relevant IEC standard production of products for all types of terminal lugs, after surface treatment, good conductivity, no contact surface oxidation, to ensure a reliable electrical conductivity. The product is reasonable overall design, using standard insulators supporting and equipped with steel support, and finally fix in the desired position with expansion screws.
Tin Plated Copper Bus Bar Main Features:
Electric Safety
The inner case made of flame-retardant materials insulation Bus-Bar location, so there is no risk of electrical accidents.
Superior Workability
Bus-Bar signing this tedious task distributor, you can work easily without need to modular MCPD.
Easy to install
By using complex and costly and time-MCPD is a quick and easy installation it does not require more than two busbars consuming production process possible.
Diverse applicability
Even in the same product configuration changes easily in accordance with the appropriate circuit construction site conditions, it can be configured.
First installation
MCPD in place using a distribution panel installation is needed urgently, you can install an emergency
Tin Plated Copper Bus Bar feature
► Excellent electrical conductivity.
► High bonding strength.
► Available for bending, drilling, stamping etc.
| Material: T2 Red copper |
| Size: Customize |
| Item: |
| Product Name: T2 Red Pure Tin Plated Copper Bus Bar For Electric Power Industry |
| Thickness: 2.0mm |
| Width: 25mm |
| Length: 77mm |
| Feature: Excellent electrical conductivity |
| Finish: Tin Plated |
| Usage: Electric power industry for connecting conductors. |
Tin Plated Copper Bus Bar Technical Parameters:
| Thickness×Width (mm) | 1.5 -20× (15-500) |
| Copper content | 99.98% |
| Elongation ( %) | 45-50% |
| melting Point | 1083℃ |
Conventional Types and Sizes:
| Types | Total Thickness | Thickness of copper | Width | Length | Weight(kg/m) |
| BG-1.0*550*650 | 1.0 | 0.3mm+0.3mm | 550 | 650 | 3.18 |
| BG-1.5*550*650 | 1.5 | 0.3mm+0.3mm | 550 | 650 | 4.77 |
| BG-2.0*220*460 | 2.0 | 0.3mm+0.3mm | 220 | 460 | 1.80 |
| BG-3.0*350*750 | 3.0 | 0.3mm+0.3mm | 350 | 750 | 7.01 |
| BG-4.0*270*1056 | 4.0 | 0.3mm+0.3mm | 270 | 1056 | 10.15 |
| BG-5.0*106*412 | 5.0 | 0.3mm+0.3mm | 106 | 412 | 1.94 |
| BG-6.0*268*333 | 6.0 | 0.3mm+0.3mm | 268 | 333 | 4.77 |
| BG-3 ×30 | 3 | 0.3mm+0.3mm | 30mm | ≤6000mm | 4.806 |
| BG-4 ×40 | 4 | 0.3mm+0.3mm | 40mm | ≤6000mm | 8.544 |
| BG-5 ×50 | 5 | 0.3mm+0.3mm | 50mm | ≤6000mm | 13.35 |
| BG-6 ×60 | 6 | 0.3mm+0.3mm | 60mm | ≤6000mm | 19.224 |
| BG-8*80 | 8 | 0.3mm+0.3mm | 80mm | ≤6000mm | 34.176 |
| BG-10*100 | 10 | 0.3mm+0.3mm | 100mm | ≤6000mm | 53.4 |
| BG-12*120 | 12 | 0.3mm+0.3mm | 120mm | ≤6000mm | 76.896 |
| Others | As request |
Trade Information
| Payment Method | T/T or L/C |
| Trade Terms | EXW / FOB / CIF |
| Payment Terms | 30% deposit after signing contract, and the balance should be paid before shipment or after sending B/L copy |
| Delivery way | By sea, land and air |
| Delivery Time | According to the quantity |

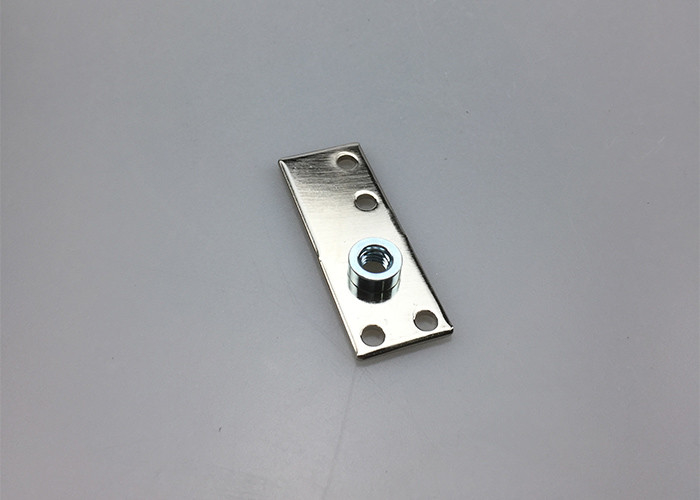

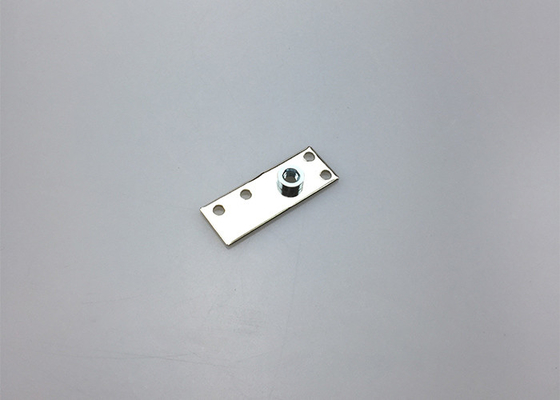

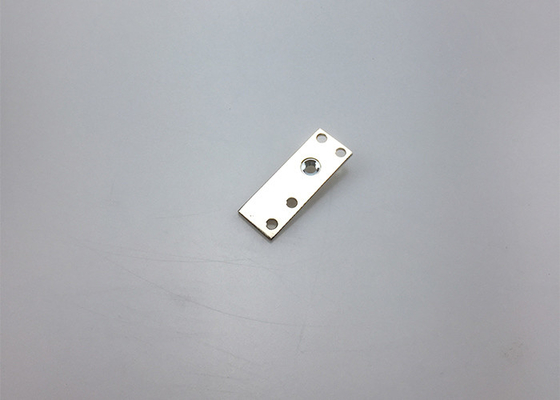

Tin Plated Copper Bus Bar Pictures
